OEM Wiring Diagrams (Except Hybrid): Headlamps/Autolamps

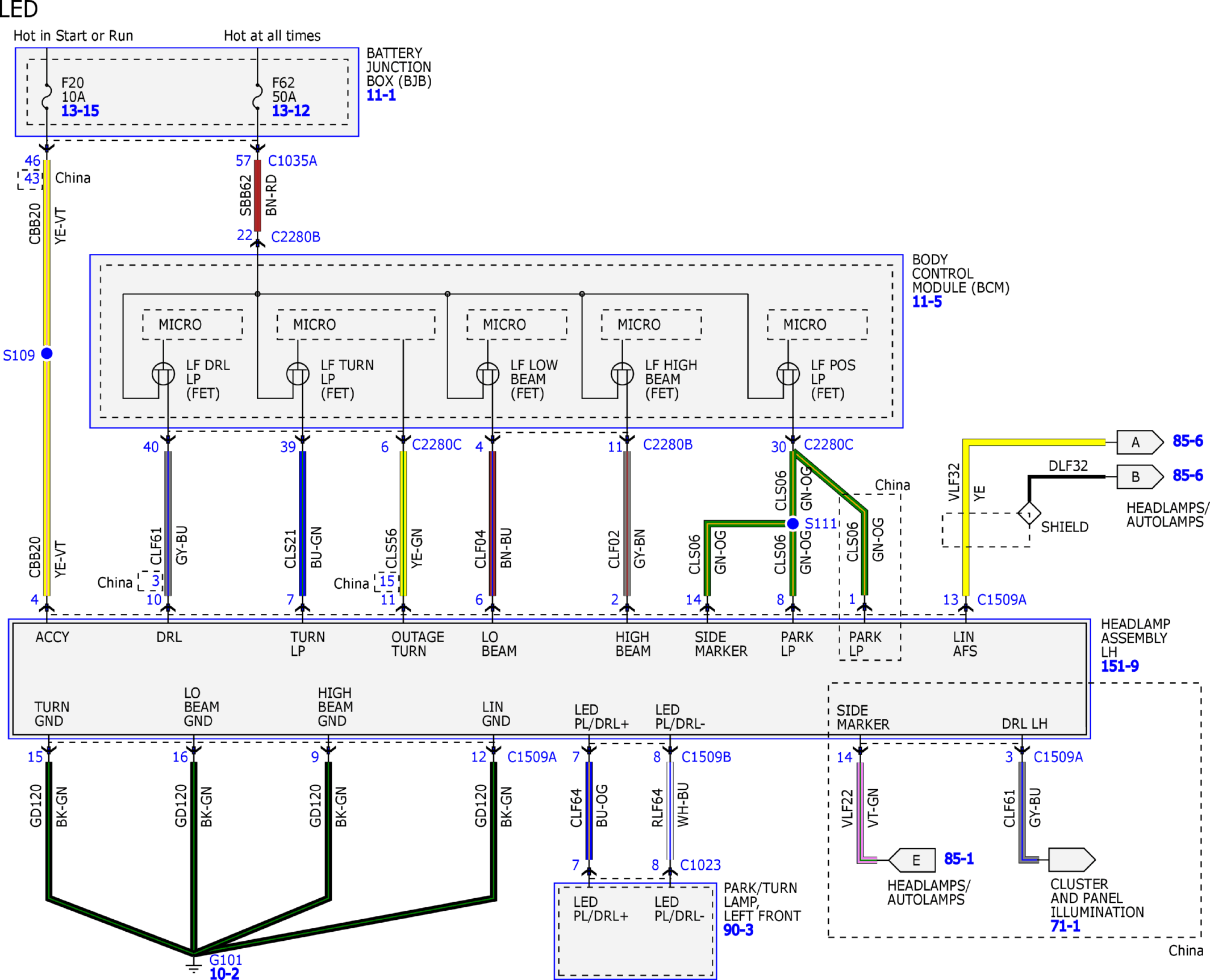

Fig 1: Headlamps/Autolamps Wiring Diagram (1 Of 7)

Courtesy of FORD MOTOR COMPANY

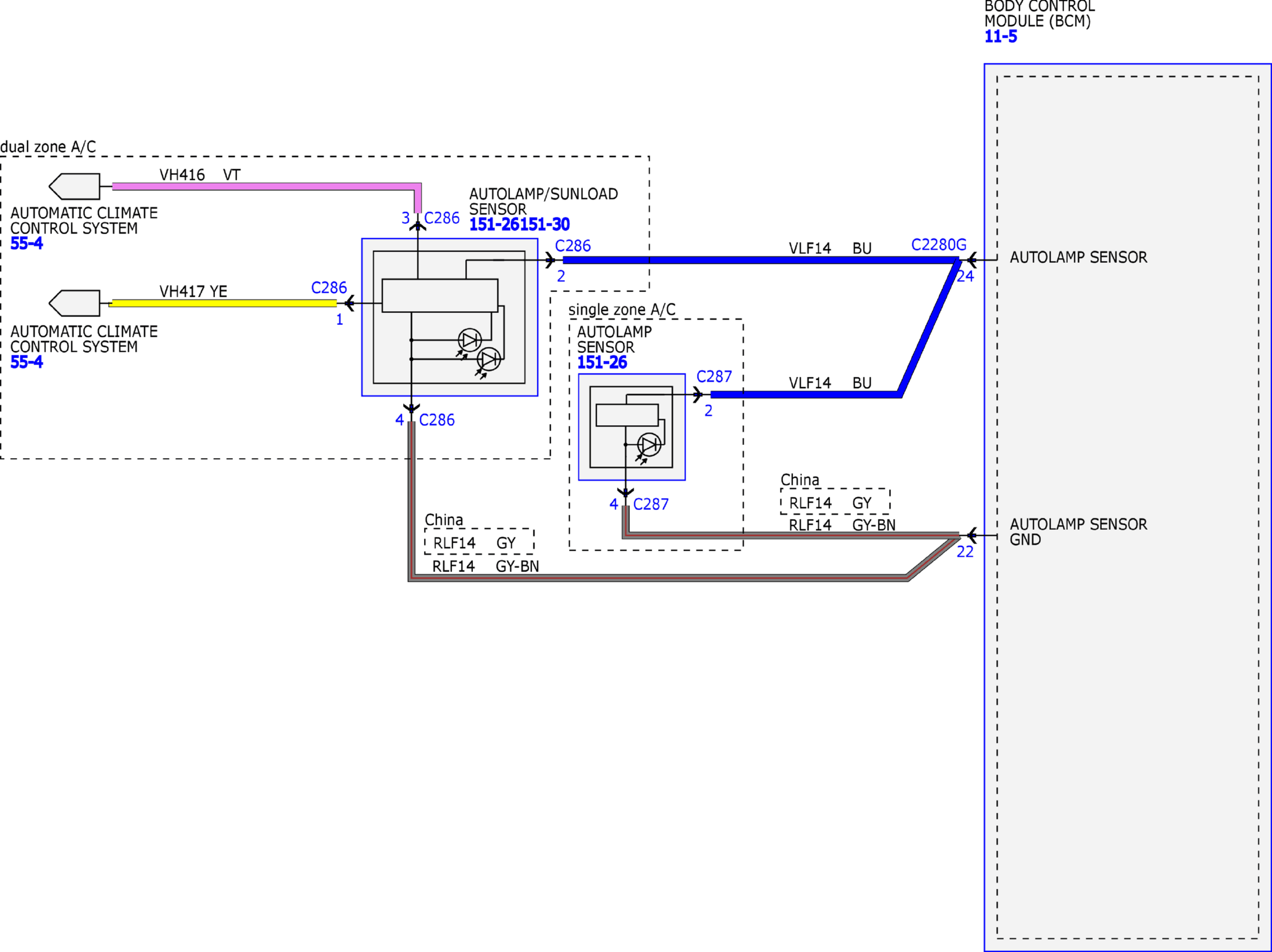

Fig 2: Headlamps/Autolamps Wiring Diagram (2 Of 7)

Courtesy of FORD MOTOR COMPANY

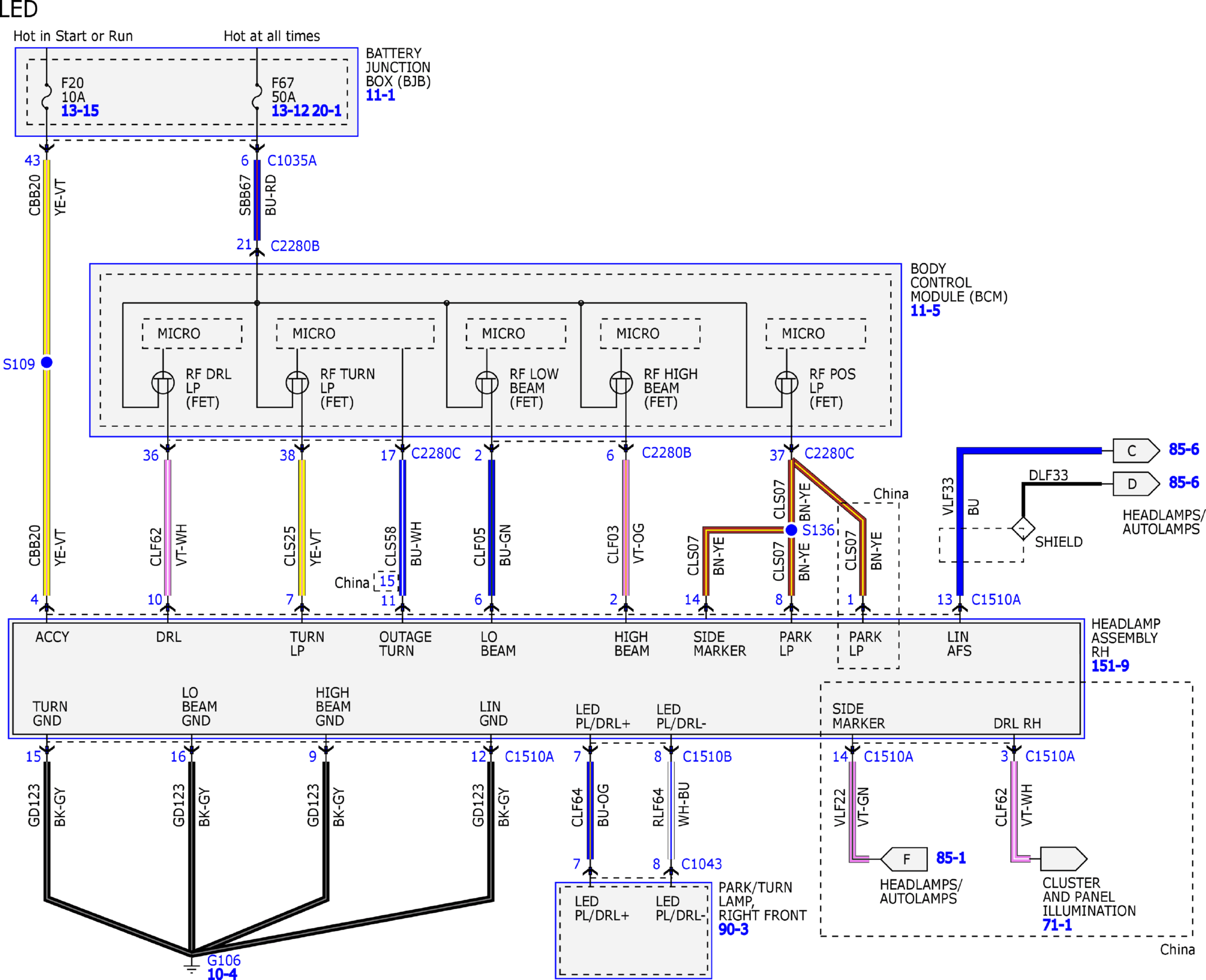

Fig 3: Headlamps/Autolamps Wiring Diagram (3 Of 7)

Courtesy of FORD MOTOR COMPANY

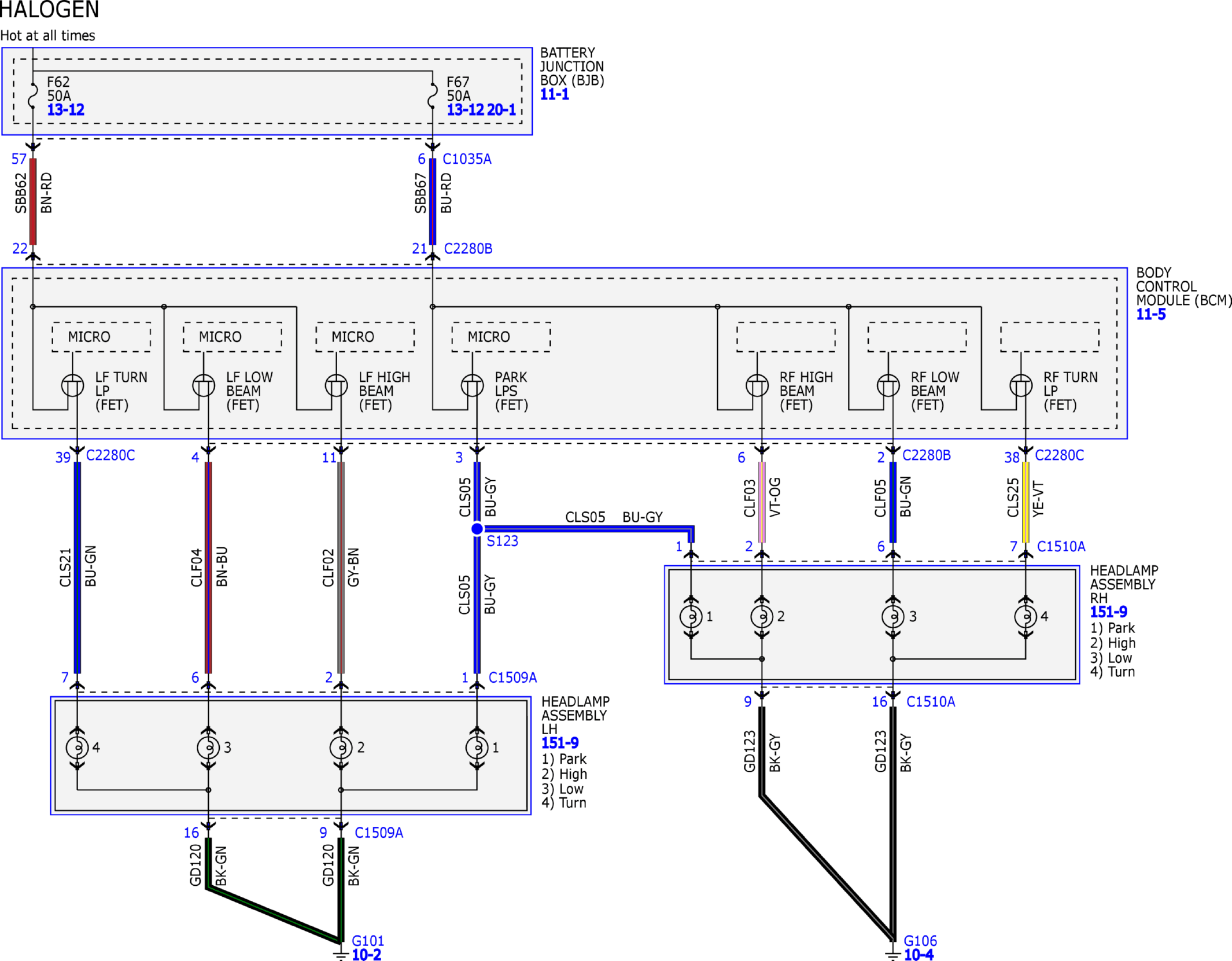

Fig 4: Headlamps/Autolamps Wiring Diagram (4 Of 7)

Courtesy of FORD MOTOR COMPANY

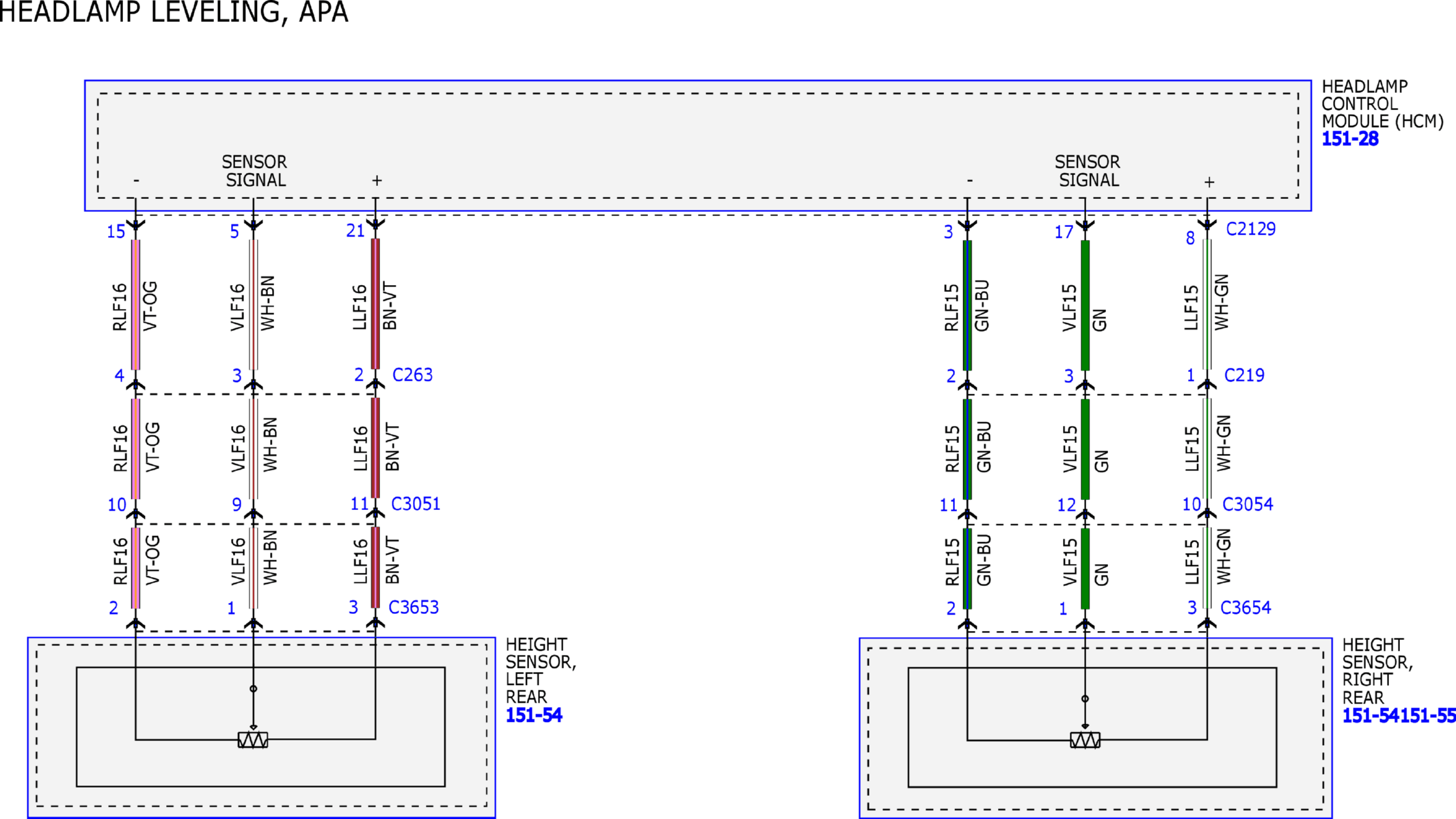

Fig 5: Headlamps/Autolamps Wiring Diagram (5 Of 7)

Courtesy of FORD MOTOR COMPANY

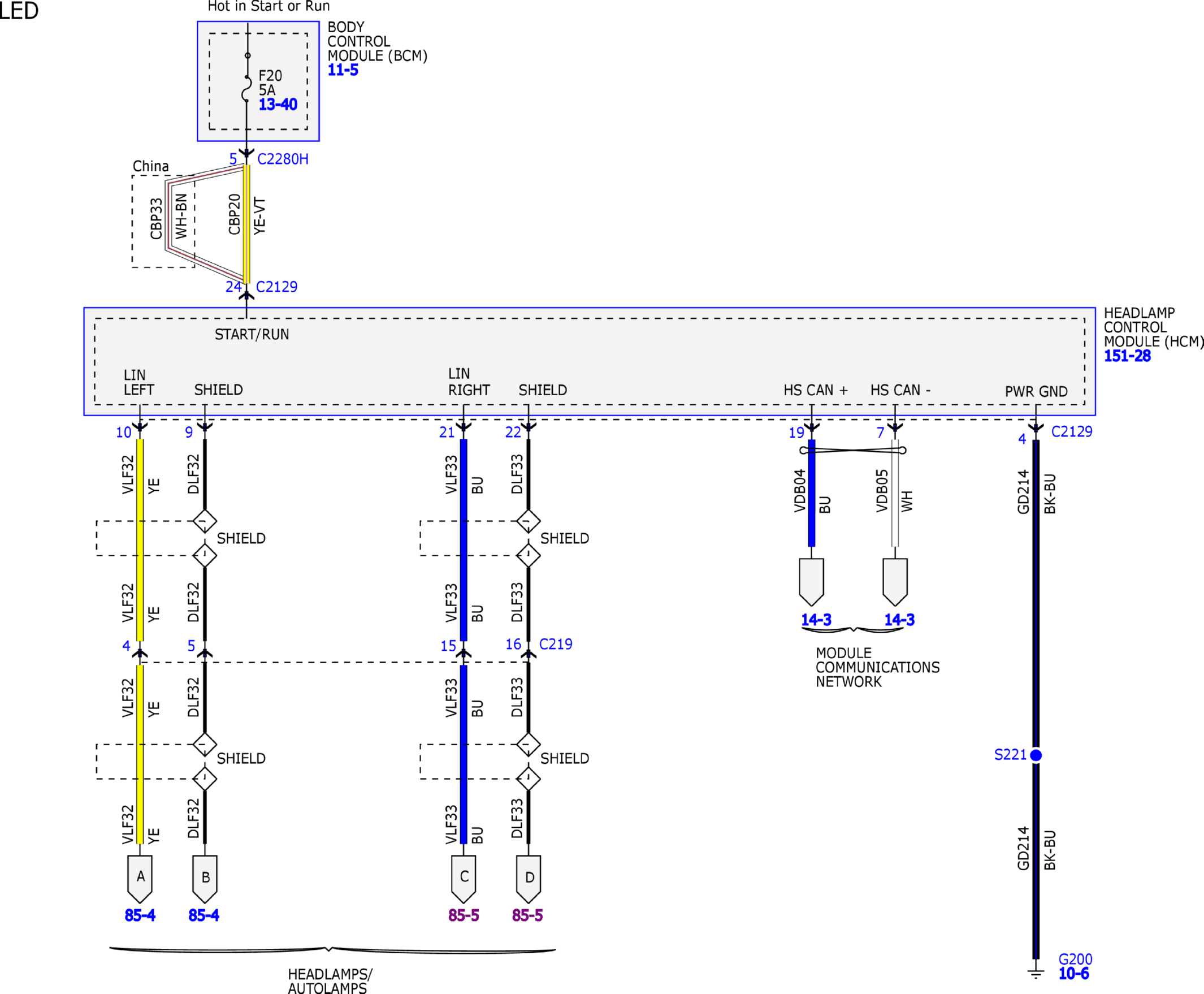

Fig 6: Headlamps/Autolamps Wiring Diagram (6 Of 7)

Courtesy of FORD MOTOR COMPANY

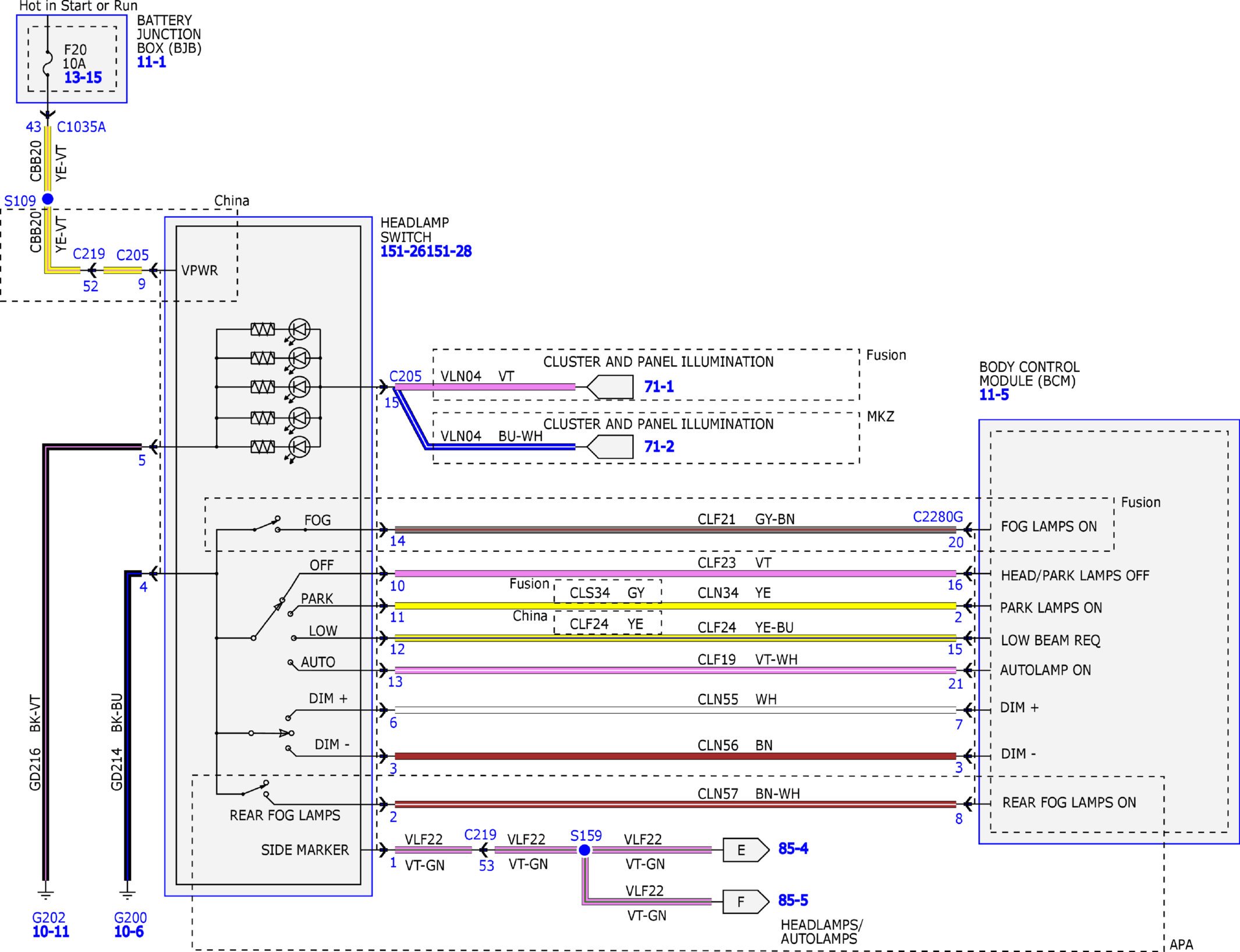

Fig 7: Headlamps/Autolamps Wiring Diagram (7 Of 7)

Courtesy of FORD MOTOR COMPANY
