Cluster and Panel Illumination

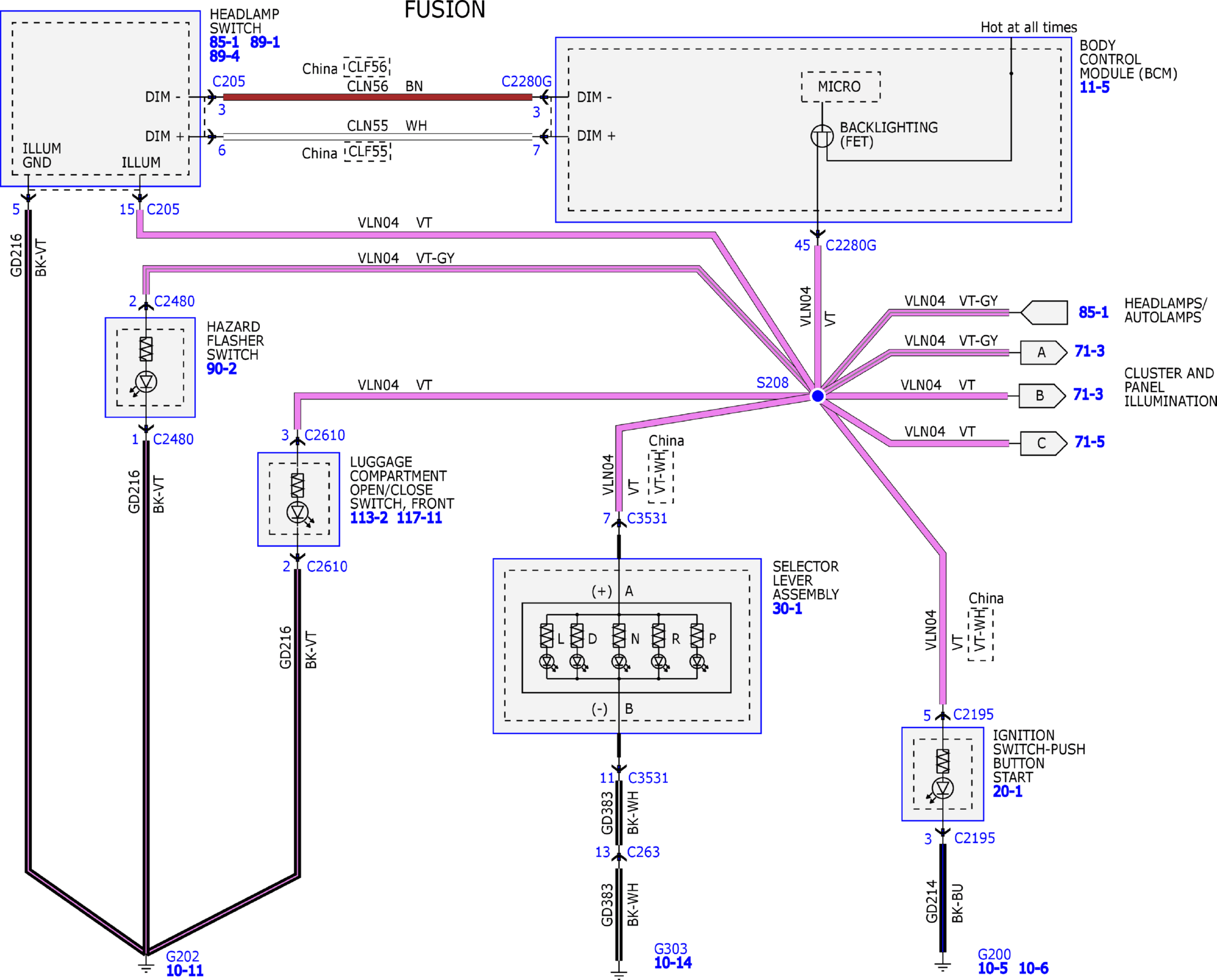

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 Of 6)
GFDW50107Courtesy of FORD MOTOR COMPANY

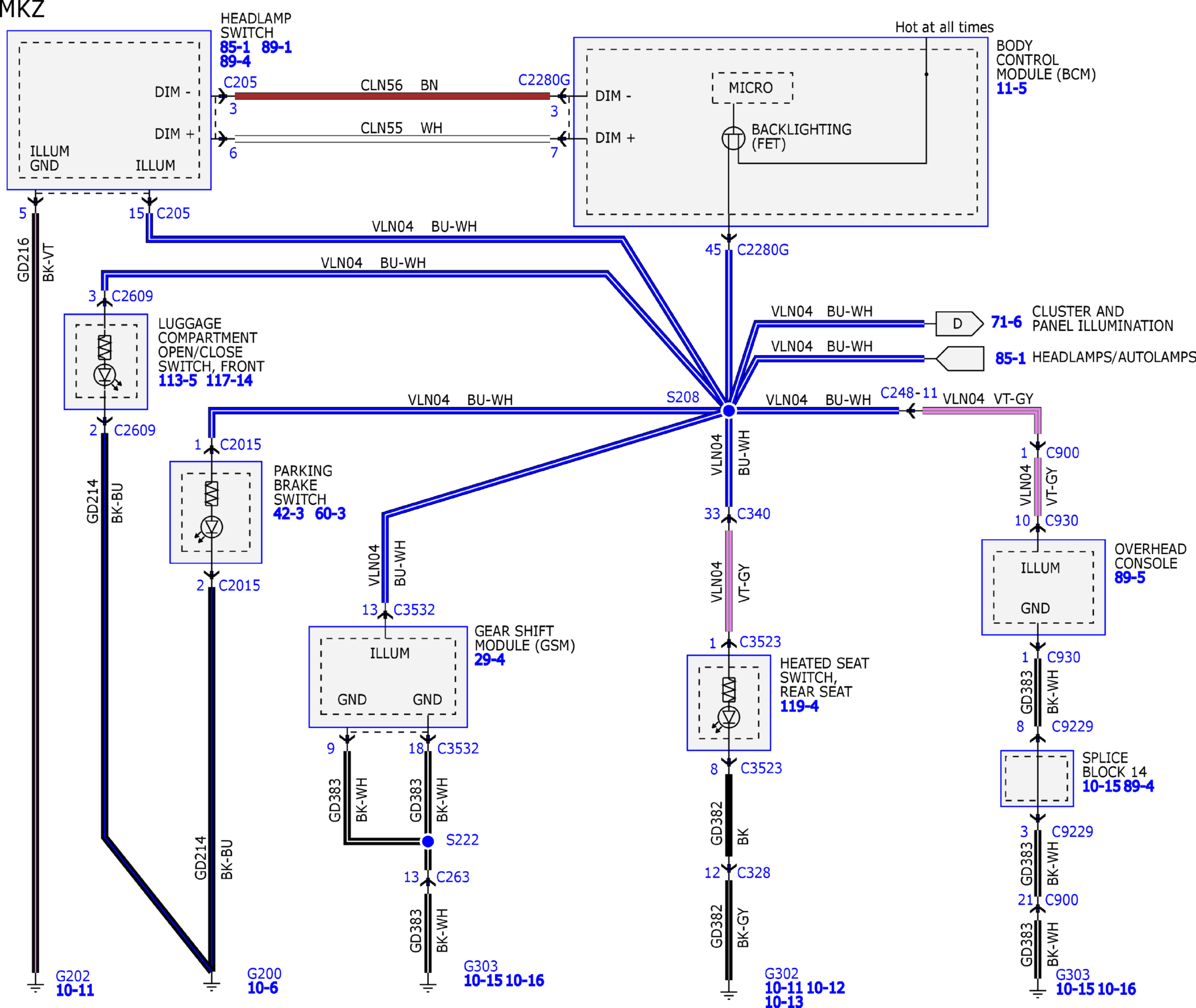

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 Of 6)
GFDW50108Courtesy of FORD MOTOR COMPANY

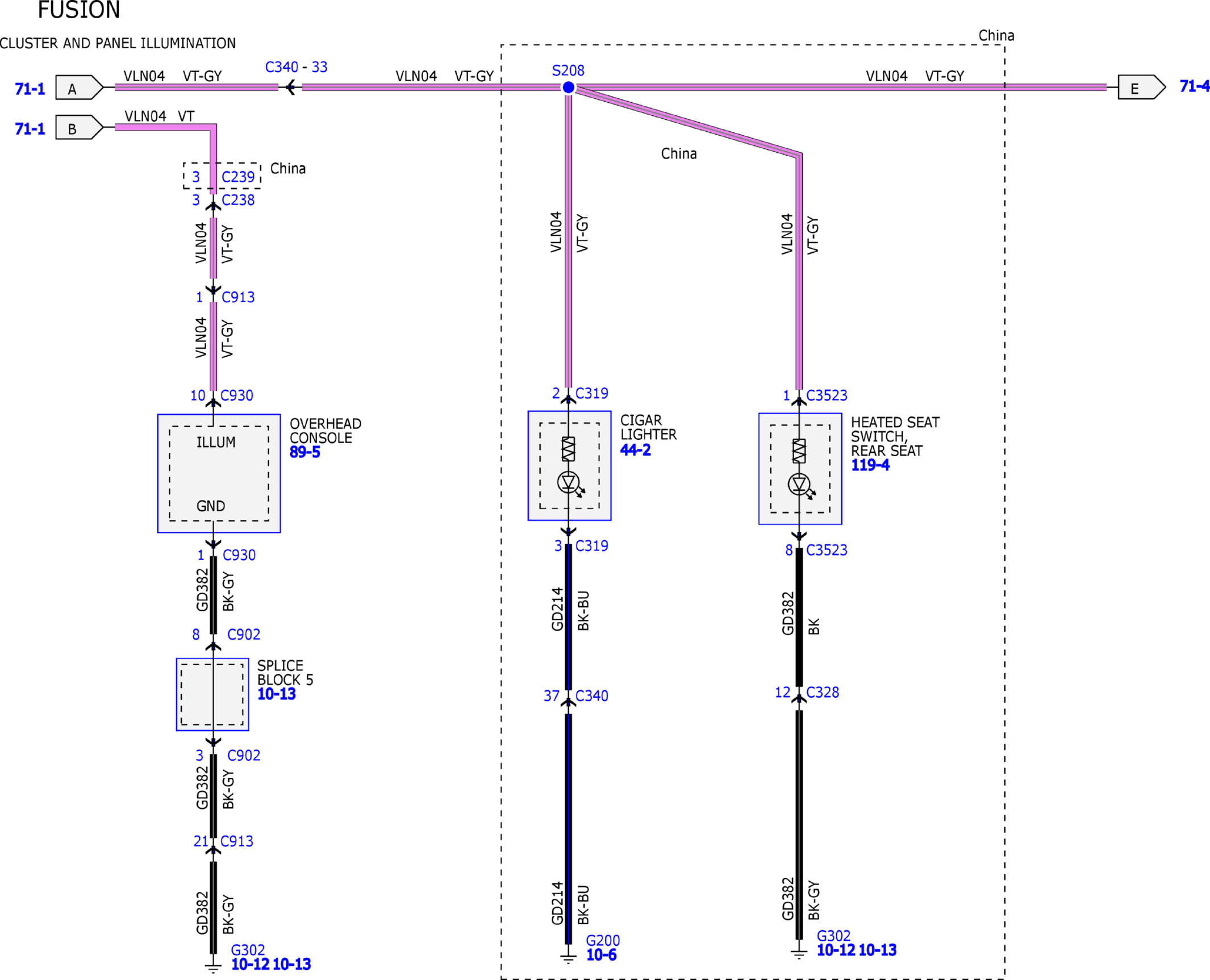

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 Of 6)
GFDW50109Courtesy of FORD MOTOR COMPANY

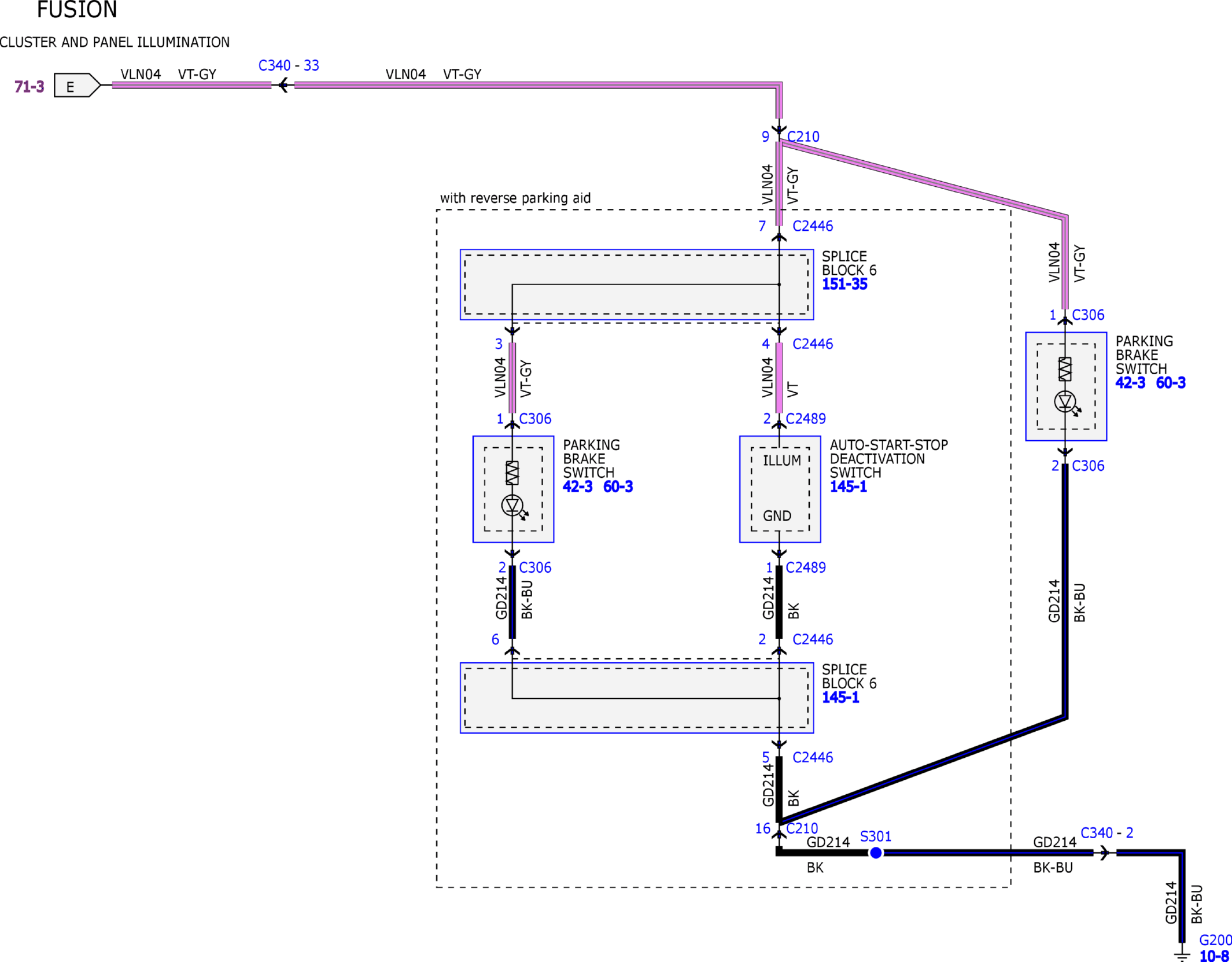

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 Of 6)
GFDW50110Courtesy of FORD MOTOR COMPANY

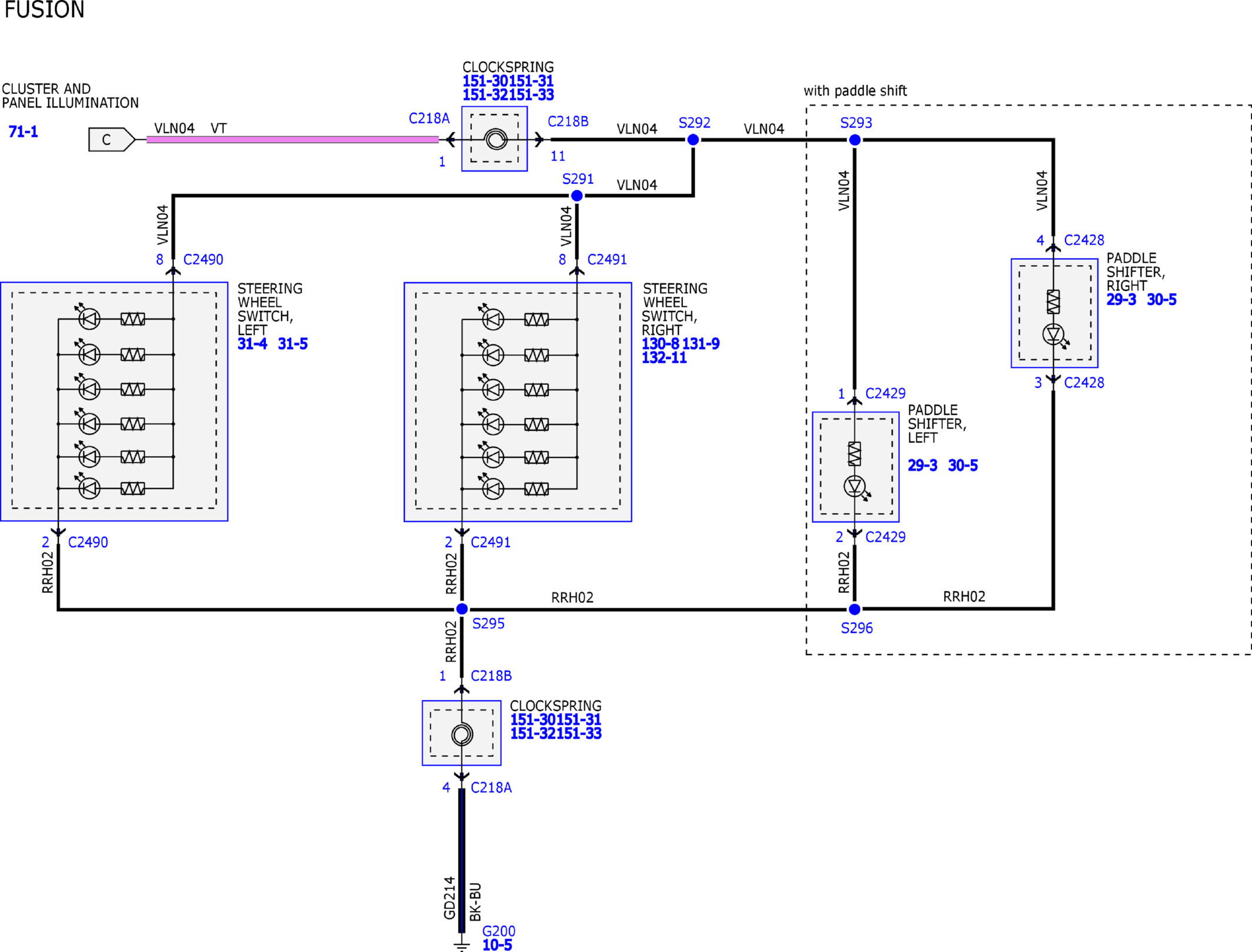

Fig 5: Cluster and Panel Illumination Wiring Diagram (5 Of 6)
GFDW50111Courtesy of FORD MOTOR COMPANY

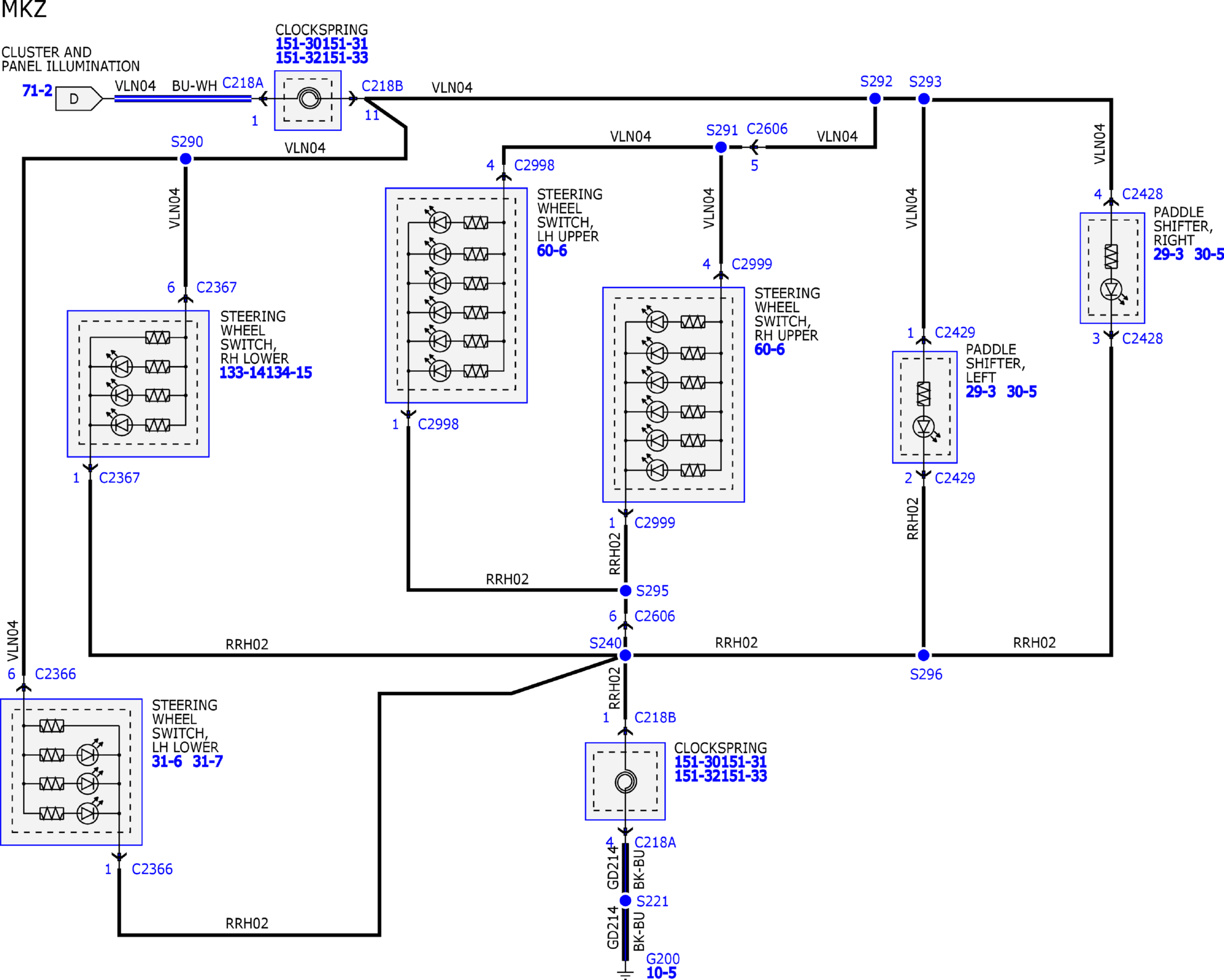

Fig 6: Cluster and Panel Illumination Wiring Diagram (6 Of 6)
GFDW50112Courtesy of FORD MOTOR COMPANY
