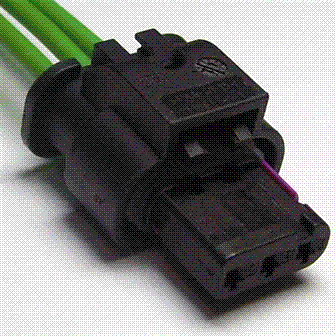

Connector End View (C1602) - COIL ON PLUG (COP) 2

Connector:C1602

Description

COIL ON PLUG (COP) 2

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D)
1	CE304 (YE-BU)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D)
1	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D)
2	GD108 (BK-VT)	16	GROUND - CHASSIS / BATTERY
3	CBK04 (VT)	16	FUSE - 4 OR CIRCUIT BREAKER (VPWR 4)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1287

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-YA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Coil - Ignition

Sensor - Front Park Aid (FPA)

Sensor - Reverse Park Aide (RPA)
