Connector End View (C1584) - TURBOCHARGER BYPASS VALVE (TCBY)
Connector:C1584
Description
TURBOCHARGER BYPASS VALVE (TCBY)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK03 (GY) | 20 | FUSE - 12 OR CIRCUIT BREAKER | |
| 1 | CBK03 (GY) | 18 | FUSE - 12 OR CIRCUIT BREAKER | |
| 2 | VE836 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # ENGINE TURBOCHARGER BYPASS VALVE (TCBY) |

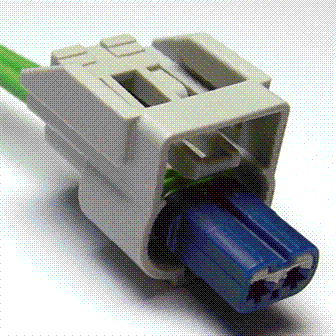

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1303 |
Service Part Number: CU2Z-14S411-ATA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Solenoid - Turbo Charger Bypass |
