Connector End View (C1582) - PROXIMITY WARNING RADAR UNIT
Connector:C1582
Description
PROXIMITY WARNING RADAR UNIT
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP32 (GN-VT) | 20 | FUSE - 32 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VDB26 (GY-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 8 | VDB25 (GN-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 9 | * | * | Not Used | |
| 10 | CBB23 (BN-YE) | 20 | FUSE - 23 OR CIRCUIT BREAKER | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used |

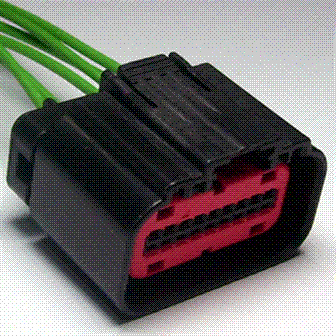

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1342 |
Service Part Number: CU2Z-14S411-GA Gauge: 20 Pin material: Silver Cavities: 18 Vehicle Uses Module - Adaptive Cruise Control |
| Pigtail Kit Part Number WPT-1411 |
Service Part Number: CU2Z-14S411-GB Gauge: 18 Pin material: Silver Cavities: 18 Vehicle Uses Module - Adaptive Cruise Control Module - Occupant Classification Module - Reverse Park Aid (RPA) |
