Connector End View (C1246) - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Connector:C1246

Description

TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	20	FUSE - 12 OR CIRCUIT BREAKER	1.5L
2	CE460 (VT-WH)	20	CTRL MOD. - POWERTRAIN # TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)	1.5L

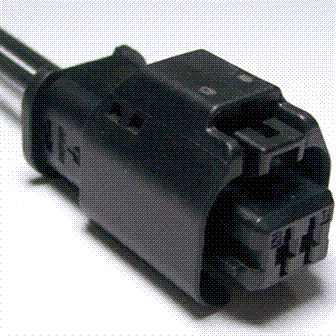

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1370

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ALA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Actuator - Turbocharger Waste Gate
