Connector End View (C1217) - CHARGE AIR COOLER (CAC) PUMP
Connector:C1217
Description
CHARGE AIR COOLER (CAC) PUMP
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD108 (BK-VT) | 16 | GROUND - CHASSIS / BATTERY | |
| 2 | CBK03 (GY) | 20 | FUSE - 12 OR CIRCUIT BREAKER | |
| 3 | CE258 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER (CAC) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1301 |

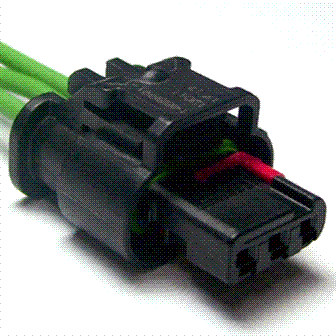

Service Part Number: CU2Z-14S411-ANA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) |
