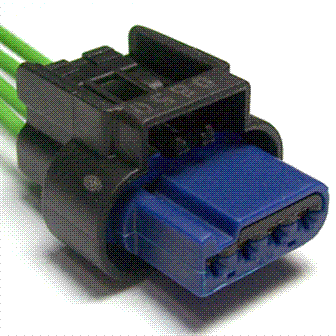

Connector End View (C1140) - MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

Connector:C1140

Description

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE803 (BU-GN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP)
2	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)
3	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)
4	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1309

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AYA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Motor - Active Grill Shutter
