Connector End View (C1110) - AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID
Connector:C1110
Description
AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID
Color
Harness
14A280
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE462 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE | |
| 2 | CBK03 (GY) | 18 | FUSE - 12 OR CIRCUIT BREAKER | |
| 2 | CBK03 (GY-YE) | 18 | FUSE - 12 OR CIRCUIT BREAKER | |
| 2 | CBK03 (GY) | 18 | FUSE - 12 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |

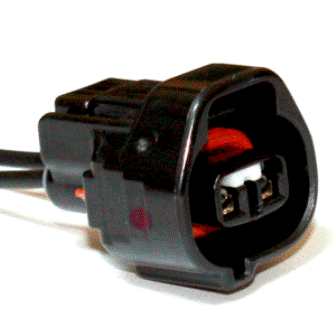

| Pigtail Kit Part Number WPT-869 |
Service Part Number: 6U2Z-14S411-DA Gauge: 18 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - License |
