Connector End View (C1073) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector:C1073

Description

FUEL RAIL PRESSURE (FRP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	1.5L
1	RE238 (BU-BN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	1.6L
1	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	2.0L
2	LE238 (GY)	20	FUEL RAIL PRESSURE (FRP)	1.6L/2.0L
2	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	1.5L
3	LE238 (GY)	20	FUEL RAIL PRESSURE (FRP)	1.5L
3	LE423 (GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	1.6L/2.0L

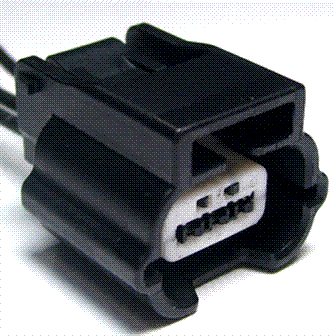

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1341

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AXA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Headlamp Leveling
