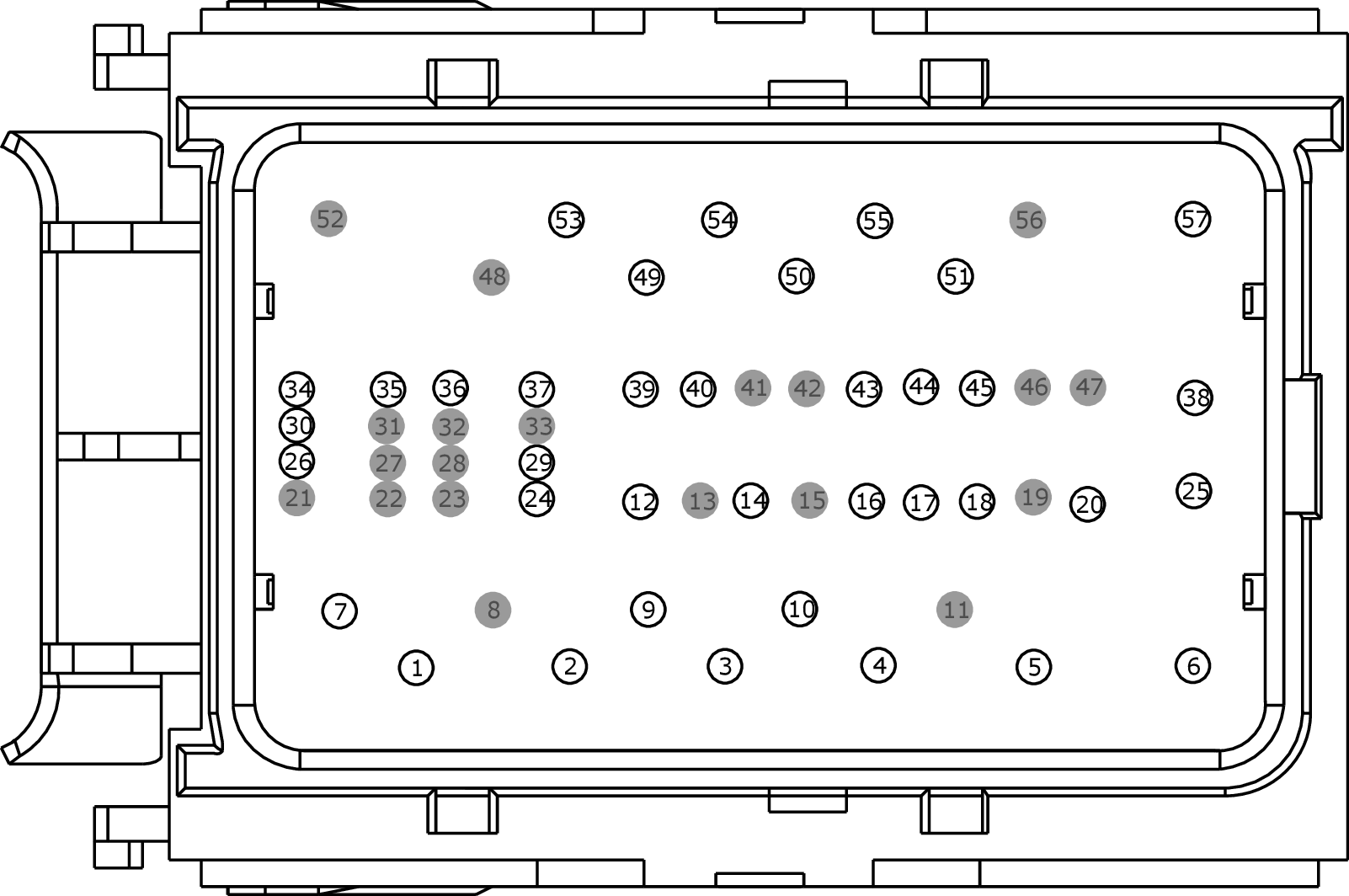

Connector End View (C1035B) - BATTERY JUNCTION BOX (BJB)
Connector:C1035B
Description
BATTERY JUNCTION BOX (BJB)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB85 (WH-RD) | 10 | FUSE - 85 OR CIRCUIT BREAKER | |
| 2 | SBB81 (RD) | 10 | FUSE - 81 OR CIRCUIT BREAKER | |
| 3 | SBB77 (GY-RD) | 12 | FUSE - 77 OR CIRCUIT BREAKER | |
| 4 | SBB73 (RD) | 12 | FUSE - 73 OR CIRCUIT BREAKER | |
| 5 | CBB66 (BU-WH) | 12 | FUSE - 66 OR CIRCUIT BREAKER | |
| 6 | CBB61 (BU-GY) | 10 | FUSE - 61 OR CIRCUIT BREAKER | |
| 7 | CDC25 (BN-GN) | 12 | RELAY - STARTER | |
| 8 | * | * | Not Used | |
| 9 | SBB05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 10 | CBB29 (VT-GY) | 20 | FUSE - 29 OR CIRCUIT BREAKER | |
| 11 | * | * | Not Used | |
| 12 | CRW13 (GN) | 18 | SWITCH - REAR WIPER | |
| 13 | * | * | Not Used | |
| 14 | SBB55 (BN-RD) | 14 | FUSE - 55 OR CIRCUIT BREAKER | |
| 15 | * | * | Not Used | |
| 16 | SBB54 (WH-RD) | 20 | FUSE - 54 OR CIRCUIT BREAKER | |
| 17 | CBB21 (BU-GY) | 14 | FUSE - 21 OR CIRCUIT BREAKER | |
| 18 | CBB53 (GY-BN) | 20 | FUSE - 53 OR CIRCUIT BREAKER | |
| 19 | * | * | Not Used | |
| 20 | CDC43 (YE-BU) | 18 | RELAY - ELECTRICAL STEERING COLUMN LOCK | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | CLN09 (YE-GN) | 20 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | |
| 25 | SBB65 (RD) | 14 | FUSE - 65 OR CIRCUIT BREAKER | |
| 26 | CE226 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + | |
| 27 | * | * | Not Used | |
| 28 | * | * | Not Used | |
| 29 | CRD22 (GY-YE) | 20 | CTRL MOD. - RELAY HEATER FRONT WINDOW RIGHT | |
| 30 | CLN09 (YE-GN) | 20 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | |
| 30 | CRD21 (WH-BN) | 20 | CTRL MOD. - RELAY HEATER FRONT WINDOW LEFT | |
| 31 | * | * | Not Used | |
| 32 | * | * | Not Used | |
| 33 | * | * | Not Used | |
| 34 | CE157 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # COLD START RELAY | |
| 35 | CE226 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + | |
| 36 | CDC45 (VT-BN) | 20 | CTRL MOD. - ELECTRICAL STEERING COLUMN LOCK + | |
| 37 | CDC40 (VT-GY) | 20 | RELAY - DELAY ACCESSORY | |
| 38 | CE608 (VT-GN) | 12 | RELAY - FUEL PUMP | |
| 39 | CRW13 (GN) | 18 | SWITCH - REAR WIPER | |
| 40 | CBB23 (BN-YE) | 20 | FUSE - 23 OR CIRCUIT BREAKER | |
| 41 | * | * | Not Used | |
| 42 | * | * | Not Used | |
| 43 | CBB25 (WH-OG) | 18 | FUSE - 25 OR CIRCUIT BREAKER | |
| 44 | CBB26 (BU-WH) | 20 | FUSE - 26 OR CIRCUIT BREAKER | |
| 45 | SBB49 (YE-RD) | 20 | FUSE - 49 OR CIRCUIT BREAKER | |
| 46 | * | * | Not Used | |
| 47 | * | * | Not Used | |
| 48 | * | * | Not Used | |
| 49 | CRW03 (VT-WH) | 14 | RELAY - FRONT WIPER | |
| 50 | CRH04 (VT-GN) | 18 | CTRL MOD. - RELAY HORN | |
| 51 | CE618 (BN-VT) | 18 | E100 RELAY (CSM) | |
| 52 | * | * | Not Used | |
| 53 | CRW25 (BU-GY) | 14 | RELAY - FRONT WIPER PARK | |
| 54 | SBB76 (VT-RD) | 12 | FUSE - 76 OR CIRCUIT BREAKER | |
| 55 | SBB72 (GN-RD) | 14 | FUSE - 72 OR CIRCUIT BREAKER | |
| 56 | * | * | Not Used | |
| 57 | SBB87 (YE-RD) | 10 | FUSE - 87 OR CIRCUIT BREAKER |
