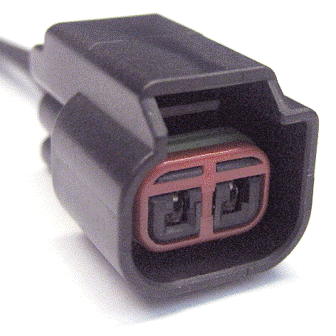

Connector End View (C1029) - EVAPORATIVE EMISSION (EVAP) PURGE VALVE
Connector:C1029
Description
EVAPORATIVE EMISSION (EVAP) PURGE VALVE
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE113 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | |
| 1 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | |
| 2 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | CBK02 (GN) | 20 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-905 |
Service Part Number: 8U2Z-14S411-EA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Relay - Daytime Running Lamp (DRL) Switch - Heater / A/C Blower (Front) |
