Connector End View (C4461) - SATELLITE RADIO ANTENNA
Connector:C4461
Description
SATELLITE RADIO ANTENNA
Color
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * (*) | * | COAX CABLE | MKZ |
| 3 | * | * | Not Used |

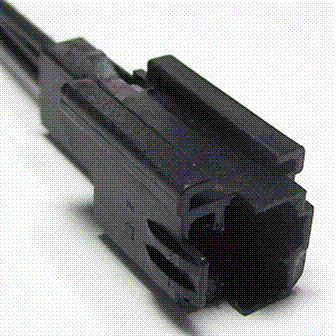

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1103 |
Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Lamp - PRNDL Indicator Module - Radio Power Antenna Switch - Overdrive Cancel |
