Connector End View (C4001) - FUEL FILLER DOOR LATCH MOTOR
Connector:C4001
Description
FUEL FILLER DOOR LATCH MOTOR
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | China |
| 2 | CPL51 (BU-GN) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | China |
| Available Pigtail Kits | |

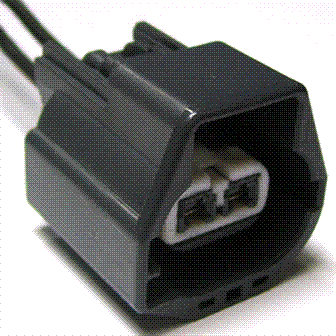

| Pigtail Kit Part Number WPT-1336 |
Service Part Number: DU2Z-14S411-KA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear |
