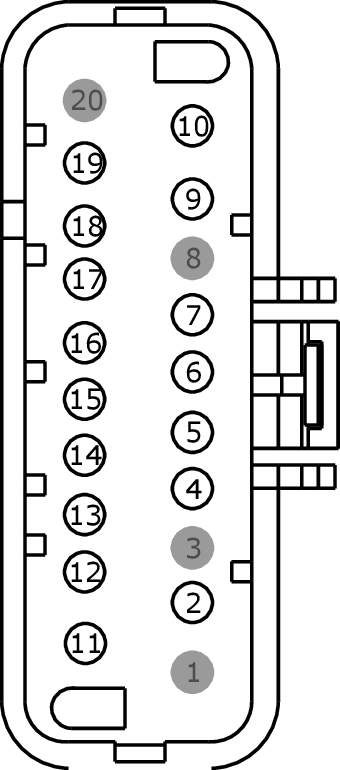

Connector End View (C3888) - SEAT CONTROL SWITCH, PASSENGER SIDE FRONT
Connector:C3888
Description
SEAT CONTROL SWITCH, PASSENGER SIDE FRONT
Color
Harness
14D230
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CPS19 (GY-VT) | 18 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | |
| 3 | * | * | Not Used | |
| 4 | CPS29 (WH-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD | |
| 5 | CPS30 (VT-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD | |
| 6 | CPS40 (VT-GY) | 20 | SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE REARWARD | |
| 7 | CPS39 (GY-YE) | 20 | SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE FORWARD | |
| 8 | * | * | Not Used | |
| 9 | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP | |
| 10 | GD904 (BK-BU) | 14 | GROUND - DRIVER SEAT # SEAT SWITCH | |
| 11 | CBX05 (VT-RD) | 14 | POWER - SEAT # POWER SEAT SWITCH | |
| 12 | CPS33 (WH) | 20 | SWITCH - SEAT ADJUST. FRONT PASSENGER FORWARD | |
| 13 | CPS38 (GN-BU) | 20 | SWITCH - SEAT ADJUST. FRONT PASSENGER REARWARD | |
| 14 | CPS28 (GN) | 14 | SWITCH - SEAT ADJUST. DRIVER REARWARD | |
| 15 | CPS23 (GN-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FORWARD | |
| 16 | CPS24 (GY) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | |
| 17 | CPS27 (BU-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | |
| 18 | CPS25 (WH-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | |
| 19 | CPS26 (YE-BU) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN | |
| 20 | * | * | Not Used |
