Connector End View (C3655) - REAR SHOCK ABSORBER LH

Connector:C3655

Description

REAR SHOCK ABSORBER LH

Color

Harness

2C054

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD05 (GN-BU)	18	CTRL MOD. - CDC # VALVE DAMPER REAR LEFT +
2	RCD05 (YE-BU)	18	CTRL MOD. - CDC # VALVE DAMPER REAR LEFT -

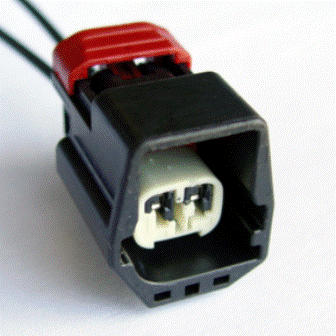

Available Pigtail Kits

Pigtail Kit Part Number

WPT-273

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-GVA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Sensor - Ambient Temp

Sensor - Heated Thermostat
