Connector End View (C3551) - PARKING BRAKE ACTUATOR MOTOR RT

Connector:C3551

Description

PARKING BRAKE ACTUATOR MOTOR RT

Color

Harness

2B254

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCB17 (BU-GN)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)
2	CCB16 (WH-VT)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+)

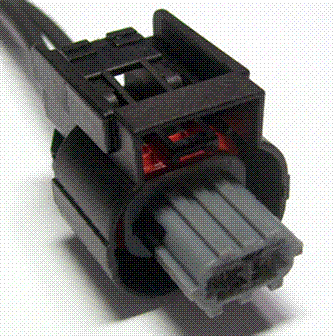

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1065

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-DA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Injector - UREA

Sensor - Fuel Rail Pressure

Valve - Fuel Metering
