Connector End View (C3547) - SEAT BACKREST HEATER MAT, RIGHT REAR
Connector:C3547
Description
SEAT BACKREST HEATER MAT, RIGHT REAR
Color
Harness
19K315
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS54 (WH-GN) | 20 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER + | |
| 2 | VHS45 (GY-BN) | 20 | SENSOR - CUSHION TEMP REAR LEFT | |
| 3 | RHS41 (GN-BN) | 20 | CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP | |
| 4 | CHS75 (VT-OG) | 20 | HEATER - SEAT REAR RIGHT CUSHION/BACK |
| Available Pigtail Kits | |

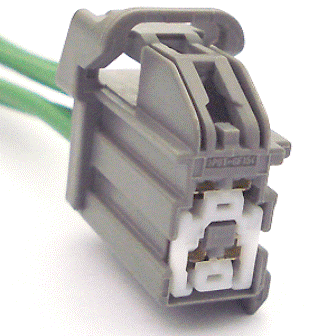

| Pigtail Kit Part Number WPT-977 |
Service Part Number: 3U2Z-14S411-LUB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses Element - Heated Seat Lamp - Ambient Lighting Lamp - Courtesy - Footwell Mirror - Sideview Motor - Adjustable Pedal Motor - Steering Column Adjust Solenoid - Brake Shift Park Interlock Speaker - Subwoofer Switch - Gear Shift Select/Neutral Safety Transceiver - Passive Anti-Theft (PATS) |
