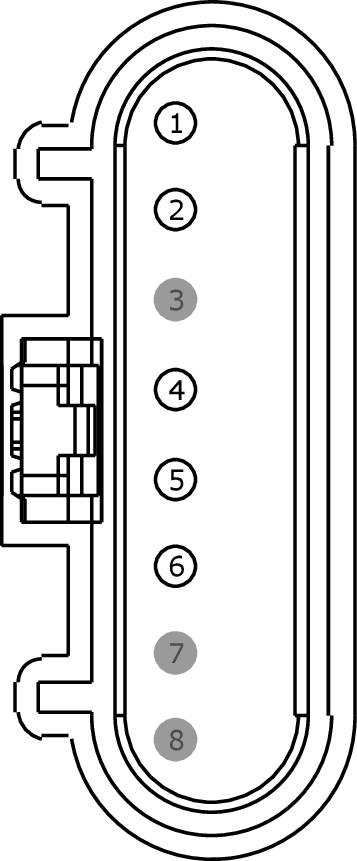

Connector End View (C805) - REAR DOOR LATCH RELEASE MOTOR RH
Connector:C805
Description
REAR DOOR LATCH RELEASE MOTOR RH
Color
Harness
14632
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL13 (BN-GN) | 14 | CTRL MOD. - DOOR LOCK # ALL UNLOCK | |
| 2 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 2 | CPL11 (GN-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 3 | * | * | Not Used | |
| 4 | RPL72 (BN-WH) | 22 | CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE | |
| 5 | CPL70 (WH-BN) | 22 | SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK | |
| 5 | CPL90 (GN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR PASSENGER | |
| 6 | CPL39 (YE) | 22 | SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR) | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1366 |
Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar / Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact |
