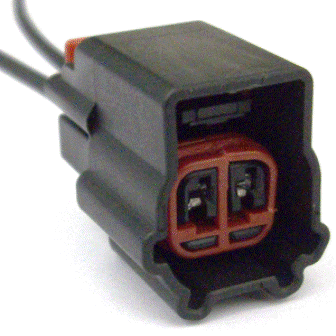

Connector End View (C567) - DRIVER FRONT DOOR SIDE IMPACT SENSOR

Connector:C567

Description

DRIVER FRONT DOOR SIDE IMPACT SENSOR

Color

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR217 (GY)	22	SENSOR - SIDE IMPACT FRONT DRIVER SIDE
1	VR217 (GY-YE)	22	SENSOR - SIDE IMPACT FRONT DRIVER SIDE
1	VR221 (BU-GN)	22	SENSOR - SIDE IMPACT ROW 3 DRIVER SIDE
2	RR131 (VT)	22	CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -
2	RR131 (VT-GY)	22	CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -
2	RR135 (GN-BN)	22	CTRL MOD. - SENSOR SIDE IMPACT ROW 3 DRIVER SIDE -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-948

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EKB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Motor - Windshield Washer Fluid Pump

Sensor - Side Impact
