Connector End View (C319) - CIGAR LIGHTER

Connector:C319

Description

CIGAR LIGHTER

Color

Harness

14B079

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB10 (YE-RD)	16	FUSE - 10 OR CIRCUIT BREAKER
2	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION
3	GD214 (BK-BU)	16	GROUND - INSTRUMENT PANEL STRUCTURE

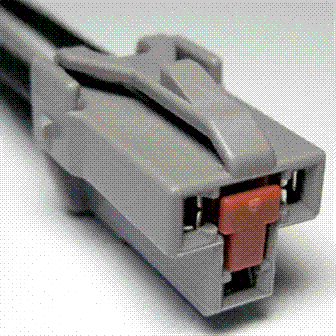

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1160

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SJB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Cigar Lighter

Lamp - Ash Tray

Power Point
