Connector End View (C316) - INLINE
InlineC316
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14B509
FEMALE
Harness 14B720
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD382 (BK-GY) | 20 | 14B509 |
| 1 | GD382 (BK-GY) | 22 | 14B720 |
| 2 | * | * | |
| 3 | VDB29 (GN-BU) | 20 | 14B509 |
| 3 | VDB29 (GN-BU) | 22 | 14B720 |
| 4 | VDB30 (WH-GN) | 20 | 14B509 |
| 4 | VDB30 (WH-GN) | 22 | 14B720 |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | SBP03 (BU-RD) | 20 | 14B509 |
| 12 | SBP03 (BU-RD) | 22 | 14B720 |

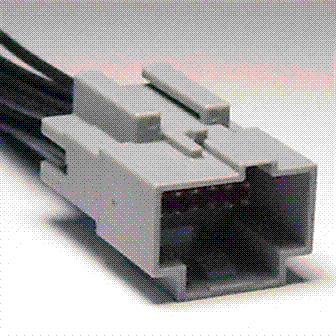

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1185 |
Service Part Number: BU2Z-14S411-AJA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses: Camera - Reverse Park Aid Switch - Gear Shift Select/Neutral Safety |
