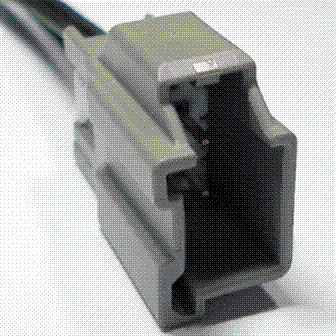

Connector End View (C3169) - SEAT CUSHION HEATER MAT, RIGHT REAR
Connector:C3169
Description
SEAT CUSHION HEATER MAT, RIGHT REAR
Color
Harness
19K315
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS75 (VT-OG) | 20 | HEATER - SEAT REAR RIGHT CUSHION/BACK | |
| 2 | GD382 (BK-GY) | 20 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1076 |
Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top |
