Connector End View (C3065) - SAFETY BELT ANCHOR PRETENSIONER, DRIVER

Connector:C3065

Description

SAFETY BELT ANCHOR PRETENSIONER, DRIVER

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR120 (BU-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +
2	RR120 (BN-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -

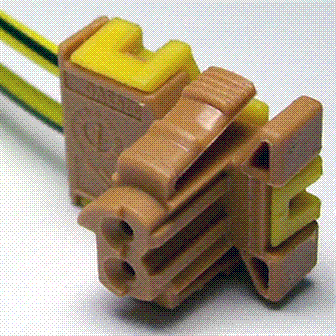

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1222

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BEA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Squib - Airbag (Passenger)
