Connector End View (C2601) - ADJUSTABLE STEERING COLUMN MOTOR, TELESCOPE

Connector:C2601

Description

ADJUSTABLE STEERING COLUMN MOTOR, TELESCOPE

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP22 (GY-BN)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD
2	VPP17 (VT-BN)	20	SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD)
3	CPP03 (GN-VT)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD
4	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON

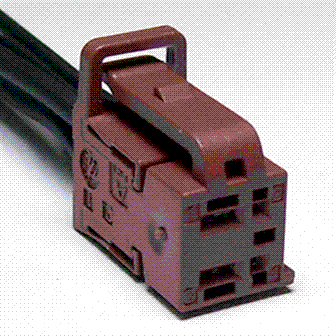

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1191

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AEA

Gauge:

14 18

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Motor - Seat Recline

Motor - Steering Column Adjust
