Connector End View (C2600) - ADJUSTABLE STEERING COLUMN MOTOR, TILT

Connector:C2600

Description

ADJUSTABLE STEERING COLUMN MOTOR, TILT

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP23 (VT-GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN
2	CPP04 (GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP
3	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON
4	VPP08 (WH)	20	SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE)

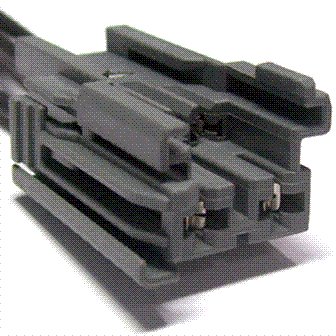

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1072

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-RA

Gauge:

14 18

Pin material:

Tin

Cavities:

Vehicle Uses

Motor - Power Seat Track

Motor - Seat Height (Front)

Motor - Steering Column Adjust
