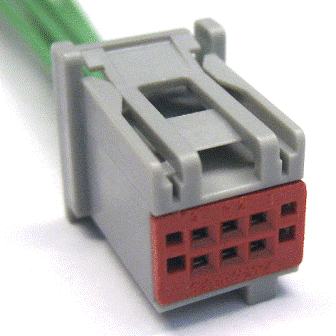

Connector End View (C2468) - INSTRUMENT PANEL SPEAKER, CENTER
Connector:C2468
Description
INSTRUMENT PANEL SPEAKER, CENTER
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RME28 (BN-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP - | |
| 2 | RME06 (GY-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP - | |
| 3 | RME29 (BU-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP - | |
| 4 | VME28 (BN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP + | |
| 5 | VME06 (GN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP + | |
| 6 | VME29 (GN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP + |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-923 |
Service Part Number: 8U2Z-14S411-XA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Module - Adjustable Pedal Memory Module - Driver Door Radio Switch - Traction Control |
