Connector End View (C2366) - STEERING WHEEL SWITCH, LH LOWER

Connector:C2366

Description

STEERING WHEEL SWITCH, LH LOWER

Color

Harness

14K147

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RRH02 (*)	*	ILLUMINATION GROUND
2	LX106 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2
3	RX101 (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)
4	LX103 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3
5	LX104 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4
6	VLN04 (*)	*	ILLUMINATION FEED

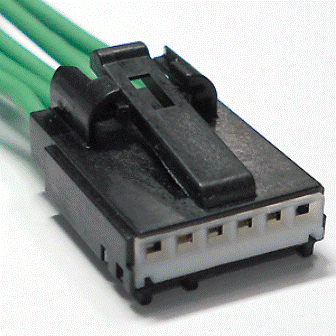

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1006

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-NB

Gauge:

Pin material:

Silver

Cavities:
