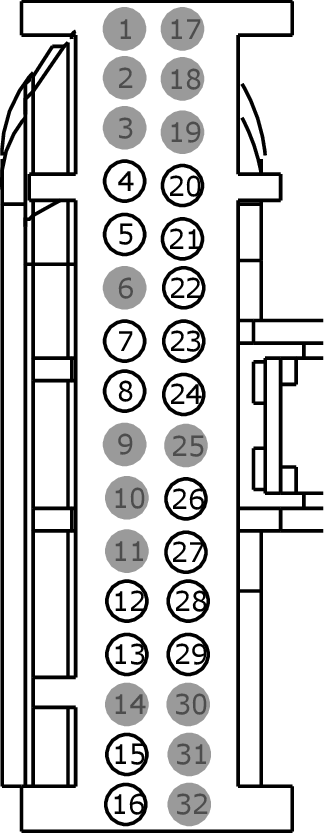

Connector End View (C2280E) - BODY CONTROL MODULE (BCM)

Connector:C2280E

Description

BODY CONTROL MODULE (BCM)

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	VPK47 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA
5	VPK40 (WH-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA
6	*	*	Not Used
7	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)
8	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	VPK02 (VT-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +
13	VPK01 (BN-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER +
14	*	*	Not Used
15	RPK06 (BU-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) -
16	VPK06 (GY-VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) +
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE
21	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA
22	VPK46 (GY)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR DRIVER SIDE POWER/DATA
23	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)
24	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)
25	*	*	Not Used
26	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +
27	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -
28	RPK01 (WH-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER -
29	RPK02 (GY-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -
30	*	*	Not Used
31	*	*	Not Used
32	*	*	Not Used
