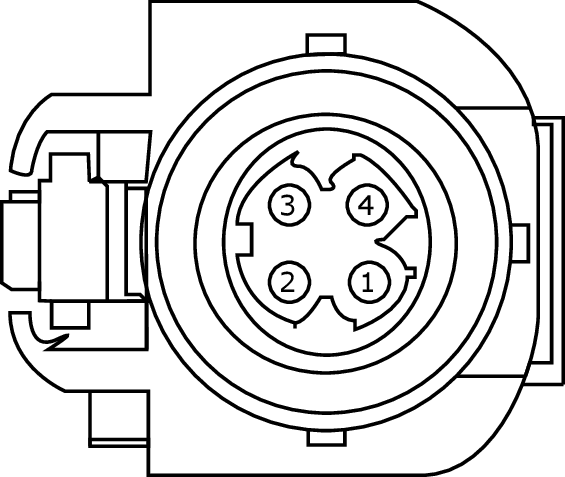

Connector End View (C2253) - FRONT DISPLAY INTERFACE MODULE (FDIM)
Connector:C2253
Description
FRONT DISPLAY INTERFACE MODULE (FDIM)
Color
Harness
#N/A
Base Part #
part #N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (*) |
* |
GROUND |
| 2 |
* (*) |
* |
COMMUNICATION - |
| 3 |
* (*) |
* |
POWER |
| 4 |
* (*) |
* |
COMMUNICATION + |
