Connector End View (C1921) - TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR

Connector:C1921

Description

TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)
3	VE803 (BU-GN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP)

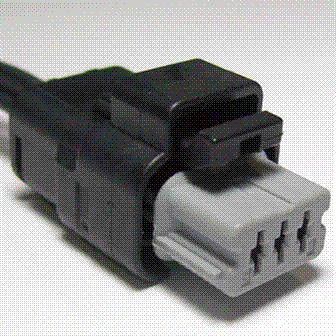

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1437

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AGA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Manifold Absolute Pressure (MAP)

Sensor - Wastegate Pressure

Solenoid - Wastegate Vacuum
