Connector End View (C1917) - HEATED OXYGEN SENSOR (HO2S) #12
Connector:C1917
Description
HEATED OXYGEN SENSOR (HO2S) #12
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | |
| 3 | RE731 (WH) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (SIGRTN) | |
| 4 | VE731 (YE-GN) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |

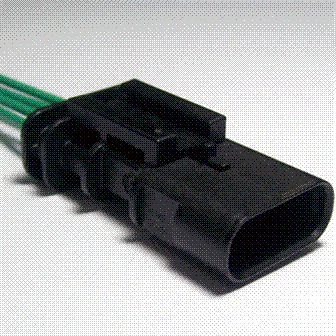

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1381 |
Service Part Number: EU2Z-14S411-EA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Sensor - Catalyst Monitor |
