Connector End View (C1909) - 6F35 TRANSMISSION
Connector:C1909
Description
6F35 TRANSMISSION
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE406 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) | |
| 2 | VET27 (BN-YE) | 20 | SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 3 | CET09 (YE-VT) | 20 | LINE PRESSURE CONTROL (LPC) | |
| 4 | CET07 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) | |
| 5 | CET25 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) | |
| 6 | CET10 (BU-GY) | 20 | TORQUE CONVERTER CLUTCH (TCC) SOLENOID | |
| 7 | CET18 (GY-YE) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) | |
| 8 | CET05 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) | |
| 9 | CET06 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) | |
| 10 | CET08 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] | |
| 18 | B-LE111 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | |
| 19 | VET26 (BN-GN) | 20 | SENSOR - OUTPUT SHAFT SPEED (OSS) | |
| 20 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |

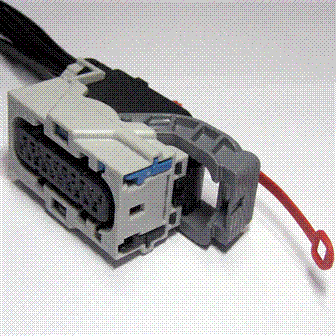

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1203 |
Service Part Number: 8U2Z-14S411-ACB Gauge: 18 Pin material: Tin (greased) Cavities: 20 Vehicle Uses Sensor - Transmission Range Transmission - Bulkhead |
