Connector End View (C1742) - ENGINE COOLANT PUMP CLUTCH

Connector:C1742

Description

ENGINE COOLANT PUMP CLUTCH

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	20	FUSE - 12 OR CIRCUIT BREAKER
2	CE174 (YE-GY)	20	CTRL MOD. - POWERTRAIN # ELECTRIC WATER PUMP RELAY

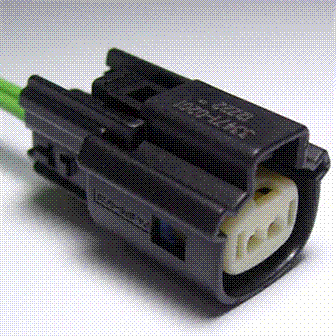

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1402

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-MA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Motor - Electric Water Pump
