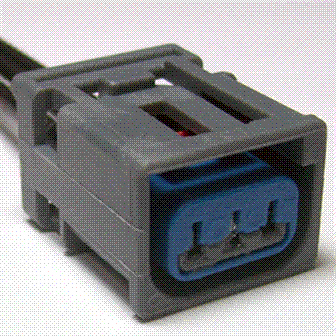

Connector End View (C1698) - CAMSHAFT POSITION 11 (CMP11) SENSOR

Connector:C1698

Description

CAMSHAFT POSITION 11 (CMP11) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)
3	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP11)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1205

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-KMB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Delta Pressure Feedback EGR

Sensor - Fuel Tank Pressure Transducer
