Connector End View (C1672) - TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)

Connector:C1672

Description

TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	18	FUSE - 12 OR CIRCUIT BREAKER	1.6L
2	CE460 (VT-WH)	18	CTRL MOD. - POWERTRAIN # TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)	1.6L

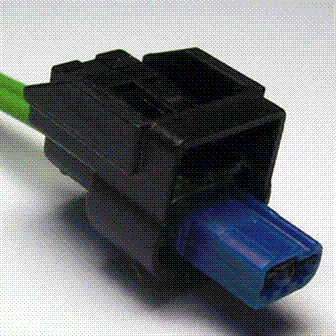

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1275

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AKA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Turbocharger Waste Gate
