Connector End View (C1645) - GENERATOR CURRENT SENSOR
Connector:C1645
Description
GENERATOR CURRENT SENSOR
Color
Harness
14A280
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
| 2 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | |
| 3 | VDC61 (VT-GN) | 20 | SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
| Available Pigtail Kits | |

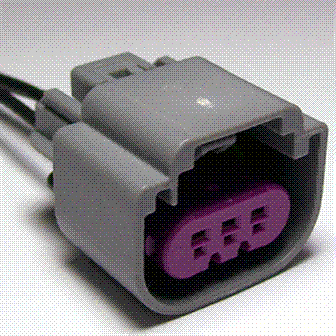

| Pigtail Kit Part Number WPT-1413 |
Service Part Number: EU2Z-14S411-UA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Battery Current Sensor - Brake Vacuum Sensor - Fuel Tank Pressure Transducer |
