Connector End View (C256C) - PASSENGER AIR
Connector:C256C
Description
PASSENGER AIR
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR139 (VT-WH) | 20 | CTRL MOD. - AIR BAG DRIVER KNEE + | |
| 1 | CR144 (GY-OG) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING + | |
| 2 | RR139 (YE) | 20 | CTRL MOD. - AIR BAG DRIVER KNEE - | |
| 2 | RR144 (VT-GN) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING - |

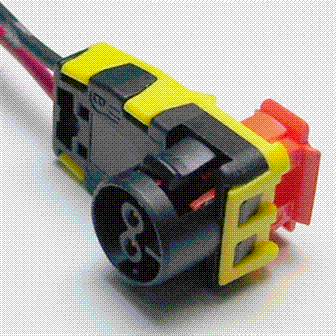

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1225 |
Service Part Number: BU2Z-14S411-BHA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger) |
