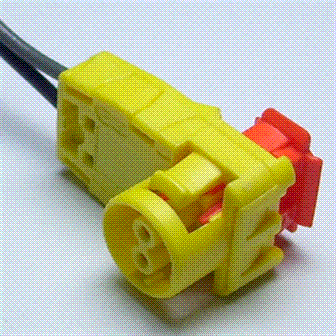

Connector End View (C256B) - PASSENGER AIR
Connector:C256B
Description
PASSENGER AIR
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR104 (YE-GY) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 + | |
| 2 | RR104 (WH-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1467 |
Service Part Number: BU2Z-14S411-BKB Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Squib - Airbag (Driver) Squib - Airbag (Passenger) |
| Pigtail Kit Part Number WPT-1227 |
Service Part Number: BU2Z-14S411-BKA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger) |
