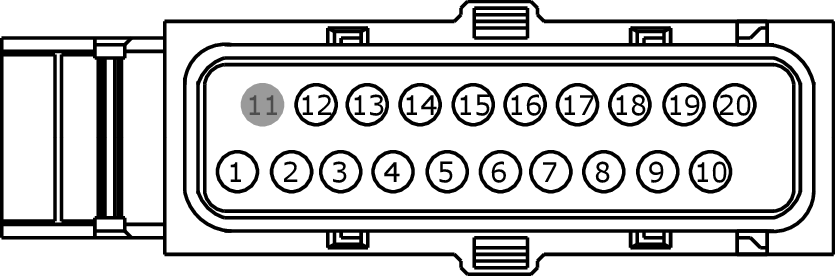

Connector End View (C168) - 6F50/6F55 TRANSMISSION
Connector:C168
Description
6F50/6F55 TRANSMISSION
Color
LT GY
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CET19 (VT-GY) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) | 2.7L |
| 1 | CET19 (VT-GY) | 18 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) | 3.5L |
| 2 | VET27 (BN-YE) | 20 | SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 3 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN (TFT) | 3.5L |
| 3 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN (TFT) | 2.7L |
| 4 | VET29 (VT-WH) | 20 | SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS] | 2.7L |
| 4 | VET29 (VT-WH) | 18 | SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS] | 3.5L |
| 5 | VET30 (YE) | 20 | SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS] | 2.7L |
| 5 | VET30 (YE) | 18 | SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS] | 3.5L |
| 6 | VET31 (BU-OG) | 20 | SENSOR - TRANSMISSION RANGE # 3 (TR3) [DTRS] | |
| 7 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] | 2.7L |
| 7 | VET32 (VT) | 18 | SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] | 3.5L |
| 8 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRS) | |
| 9 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TSS) (OSS) | |
| 10 | RET04 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) | |
| 11 | * | * | Not Used | |
| 12 | CET08 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) | |
| 13 | CET05 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) | |
| 14 | CET10 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # TORQUE CONVERTOR CONTROL (TCC) | |
| 15 | CET25 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) | |
| 16 | CET06 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) | |
| 17 | CET07 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) | |
| 18 | CET09 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # LINE PRESSURE CONTROL (LPC) | |
| 19 | RET33 (WH-VT) | 20 | SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) - | |
| 20 | LE111 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) (TSS) (OSS) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1203 |
Service Part Number: 8U2Z-14S411-ACB Gauge: 18 Pin material: Tin (greased) Cavities: 20 Vehicle Uses Sensor - Transmission Range Transmission - Bulkhead |
