Connector End View (C129) - INTAKE AIR TEMPERATURE (IAT) SENSOR
Connector:C129
Description
INTAKE AIR TEMPERATURE (IAT) SENSOR
Color
BK
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 2 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |

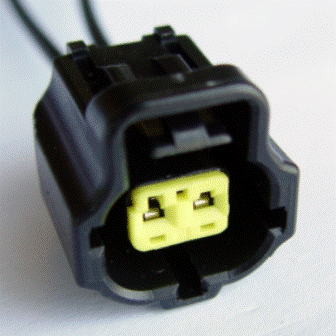

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-322 |
Service Part Number: 3U2Z-14S411-JZA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Resistor - Daytime Running Lamp (DRL) Sensor - Air Charge Temperature Sensor - Brake Pressure Solenoid - Canister Vent Switch - Brake Pressure |
