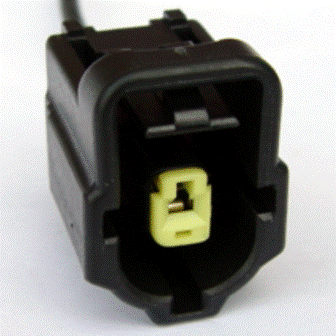

Connector End View (C103) - ENGINE OIL PRESSURE (EOP) SWITCH

Connector:C103

Description

ENGINE OIL PRESSURE (EOP) SWITCH

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CMC24 (GY)	18	SWITCH - OIL PRESSURE

Available Pigtail Kits

Pigtail Kit Part Number

WPT-439

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MHA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Sensor - Oil Pressure

Switch - Oil Sending Unit
