Home >> Ford >> 2016 >> Fusion Titanium, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid) >> Component Location Charts >> C3056 (MKZ) Rear of vehicle in roof RH

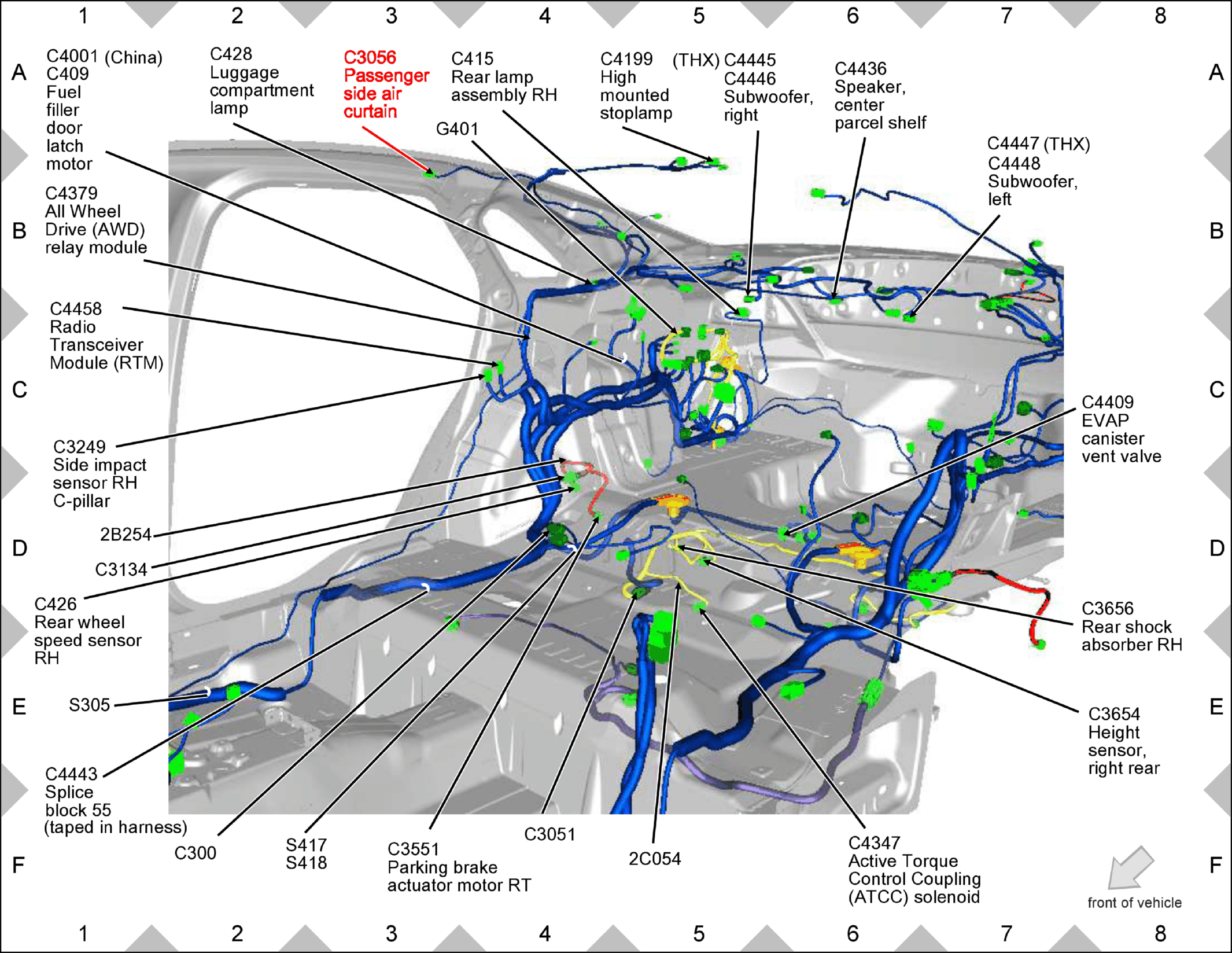

C3056 (MKZ) Rear of vehicle in roof RH

GFDW49047

Courtesy of FORD MOTOR COMPANY
