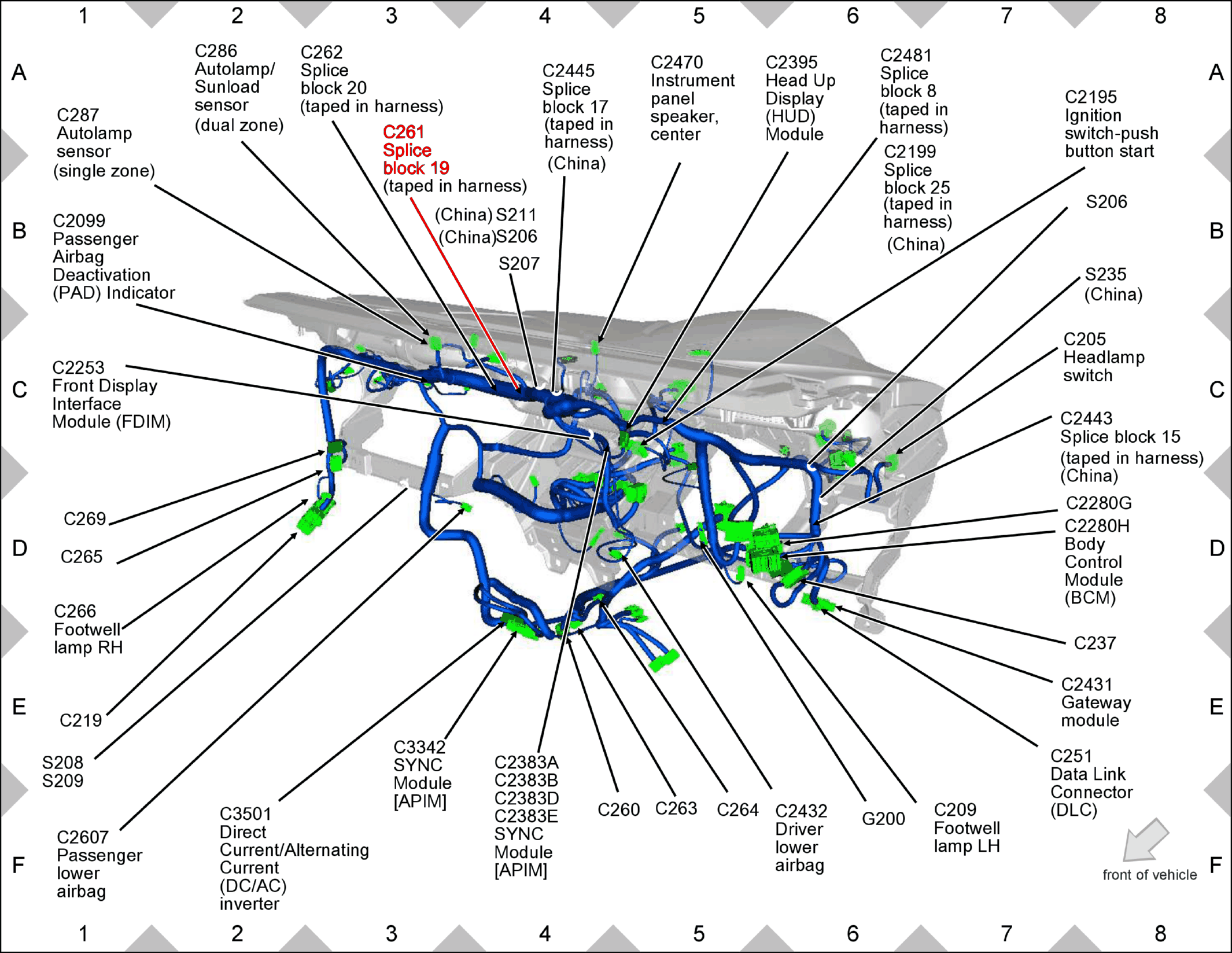

C261 (Fusion) Behind dash panel, center, taped in harness

GFDW48430

Courtesy of FORD MOTOR COMPANY
