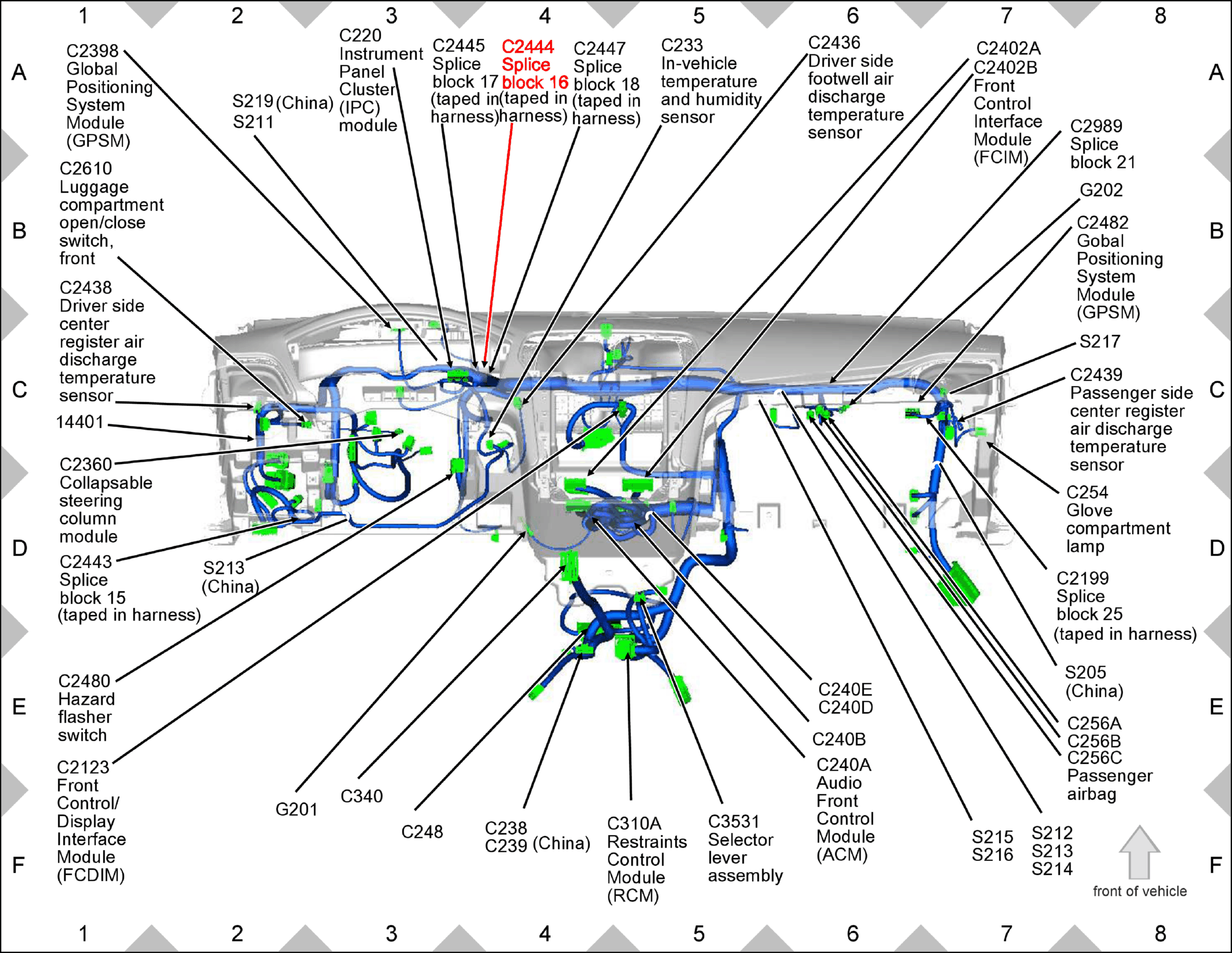

C2444 (Fusion) Behind dash panel, LH side, taped in harness

GFDW49003

Courtesy of FORD MOTOR COMPANY
