LEMON Manuals: Even more car manuals for everyone

Home >> Ford >> 2016 >> Fusion Titanium, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid) >> Component Location Charts >> C2199 (Fusion) Instrument panel (14401), in TorO to C2428

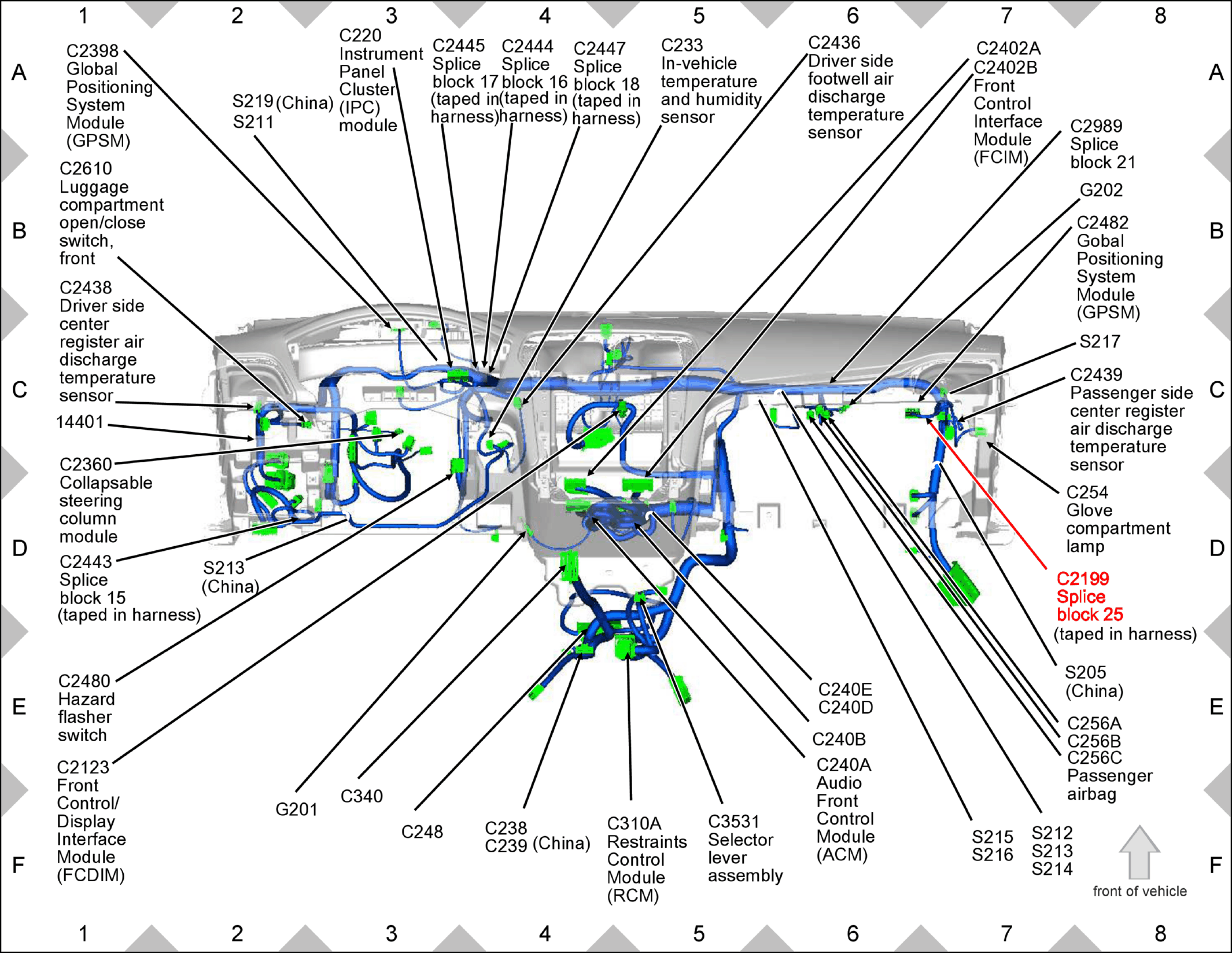

C2199 (Fusion) Instrument panel (14401), in TorO to C2428

GFDW48939

Courtesy of FORD MOTOR COMPANY
