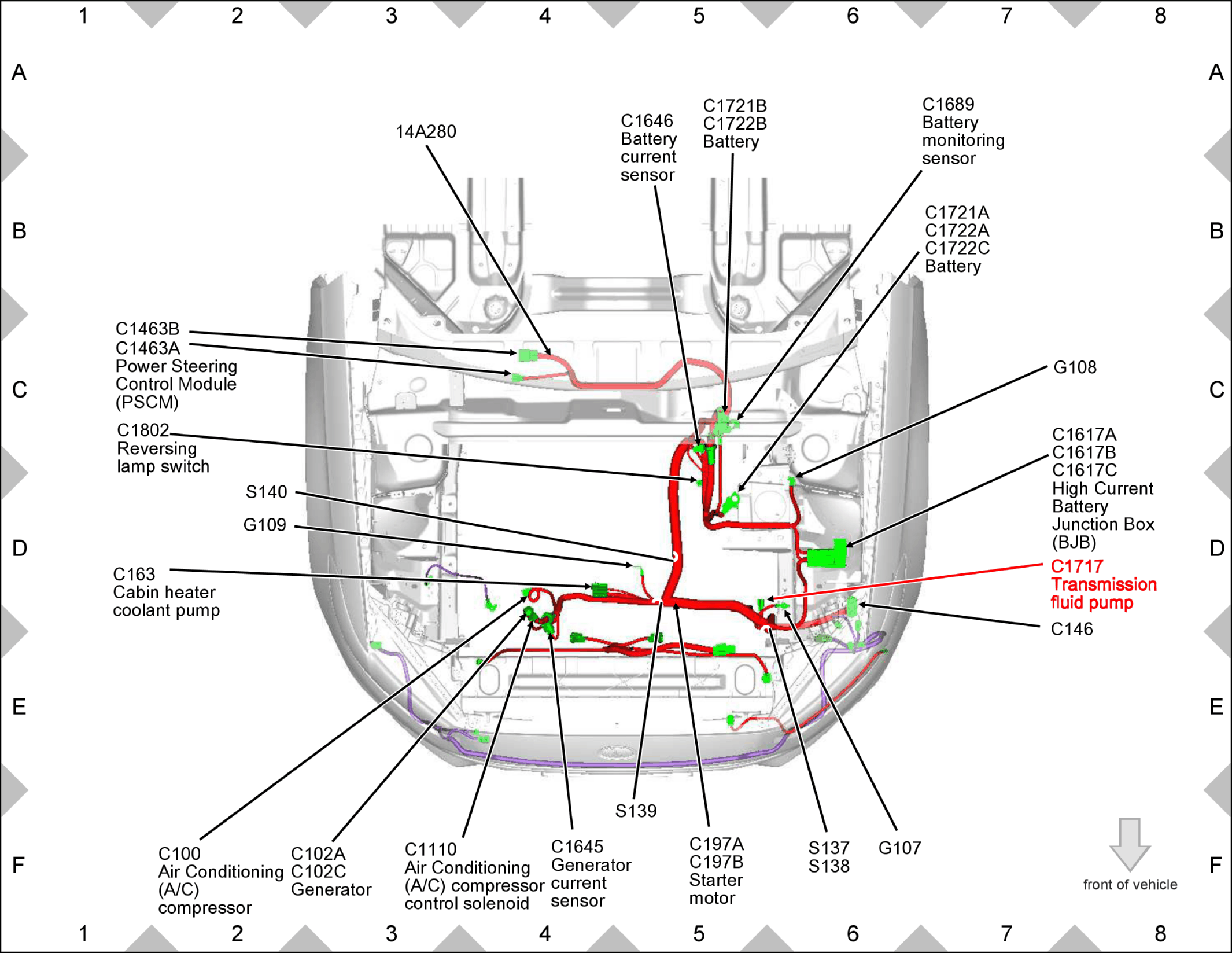

C1717 (with auto-start-stop) Front of engine compartment, LH side

GFDW48895

Courtesy of FORD MOTOR COMPANY
