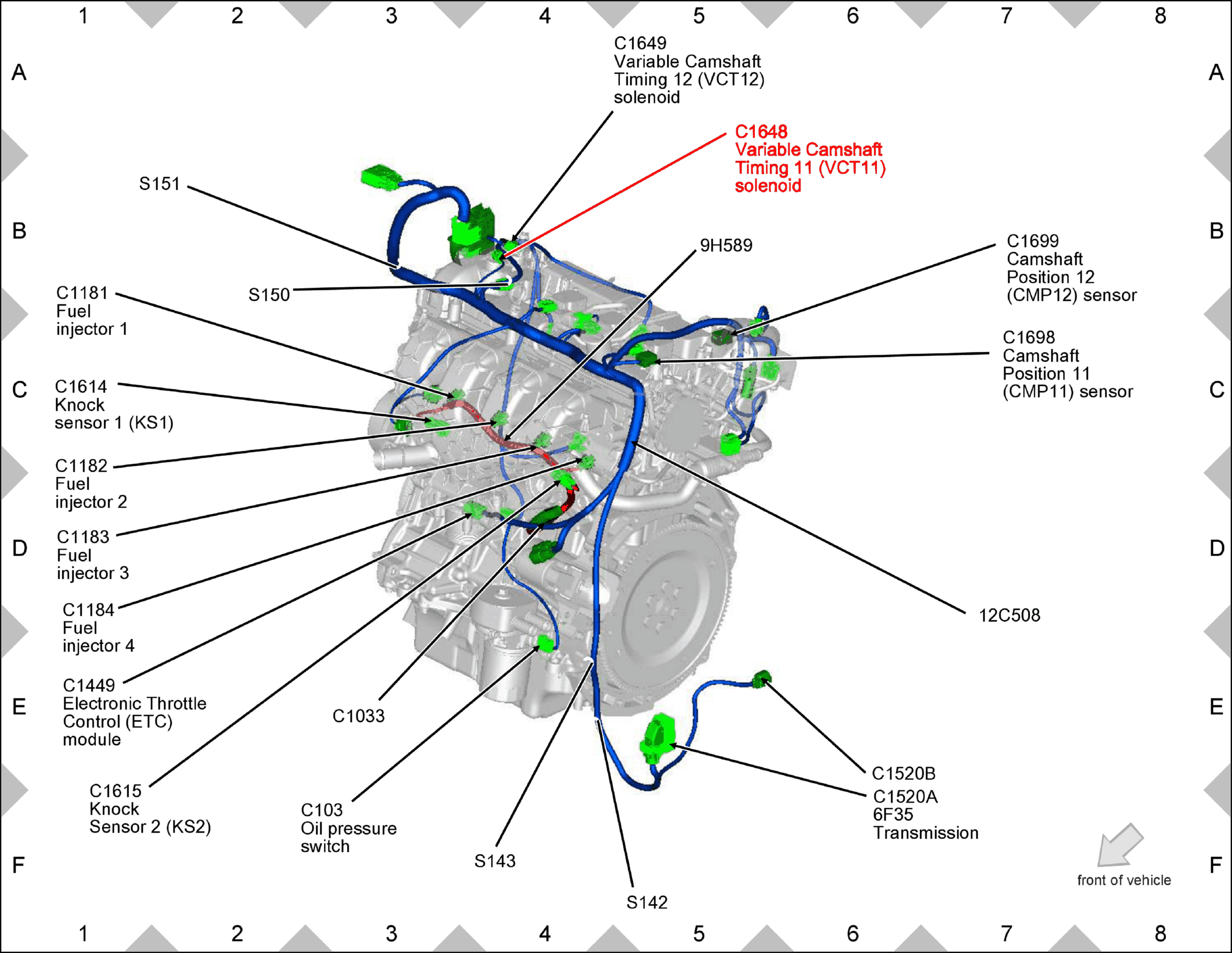

Home >> Ford >> 2016 >> Fusion Titanium, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid) >> Component Location Charts >> C1648 (2.0L) Top of engine RH
