High Current Battery Junction Box Location (BJB)

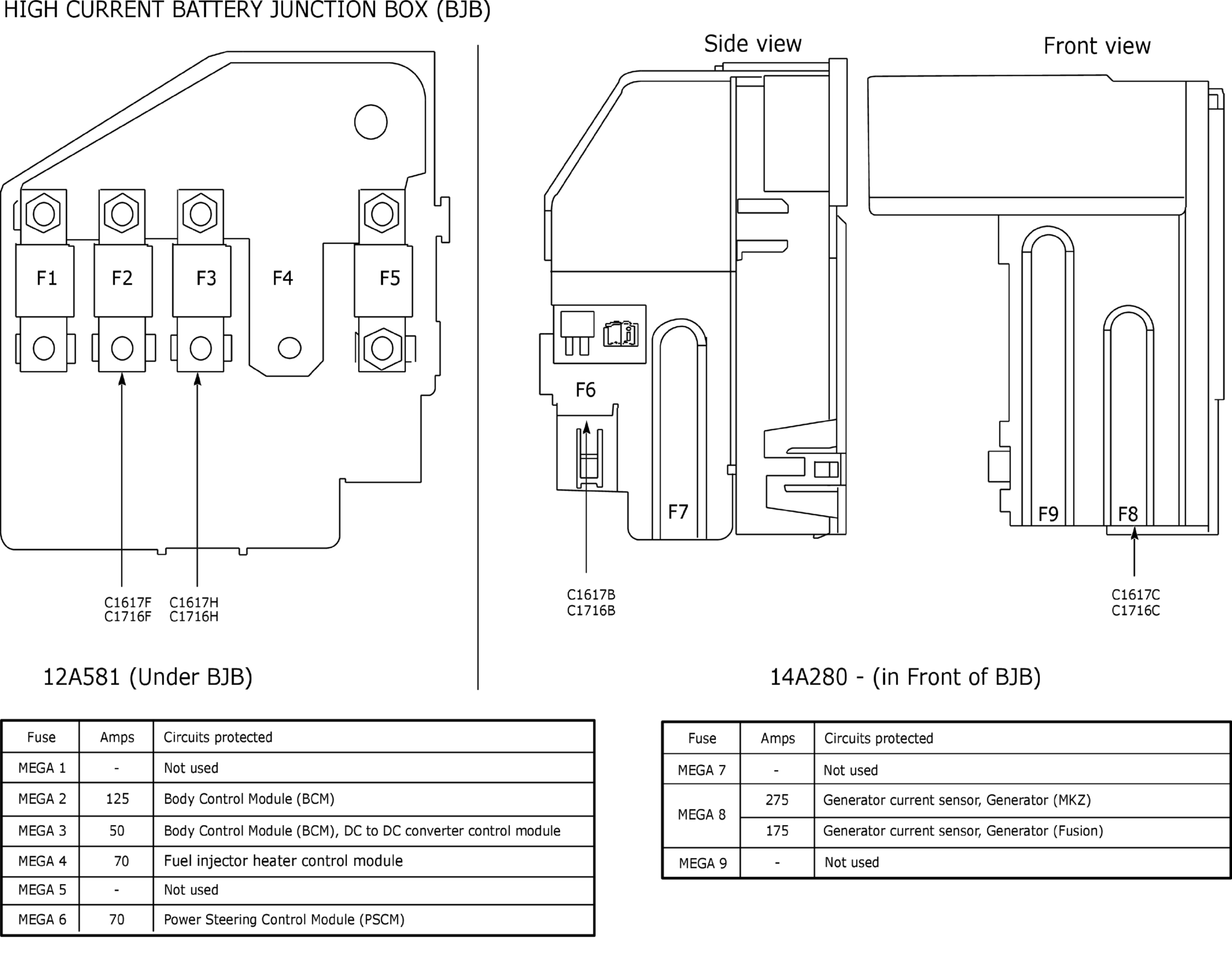

Fig 1: High Current Battery Junction Box Component Location (BJB)

GFDW50014

Courtesy of FORD MOTOR COMPANY
