Battery Cables - 2.0L EcoBoost (184kW/250PS) - MI4: Removal
NOTE:
This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Follow the health and safety precautions. REFER to: Health and Safety Precautions .
- 2.
With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
- 3.
Disconnect the battery. REFER to: Battery Disconnect and Connect .

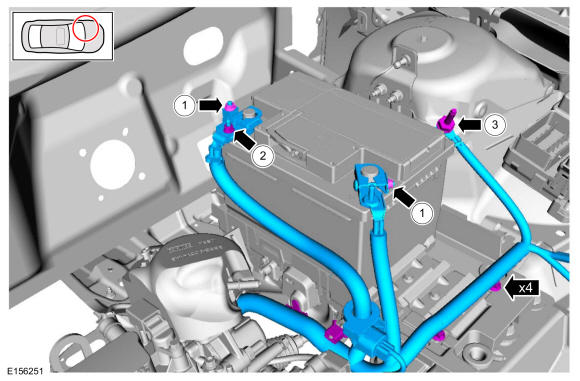

- 4.
- 1.
Torque: 44 lb.in (5 Nm)
- 2.
Torque: 80 lb.in (9 Nm)
- 3.
Torque: 106 lb.in (12 Nm)
- 1.
- 5.
- 6.
- 1.
Torque: 150 lb.in (17 Nm)
- 2.
Torque: 106 lb.in (12 Nm)
- 3.
Torque: 53 lb.in (6 Nm)
- 4.
Torque: 150 lb.in (17 Nm)
- 1.
- 7.
- 1.
Torque: 89 lb.in (10 Nm)
- 2.
Torque: 133 lb.in (15 Nm)
- 1.
- 8.
Torque: 106 lb.in (12 Nm)
